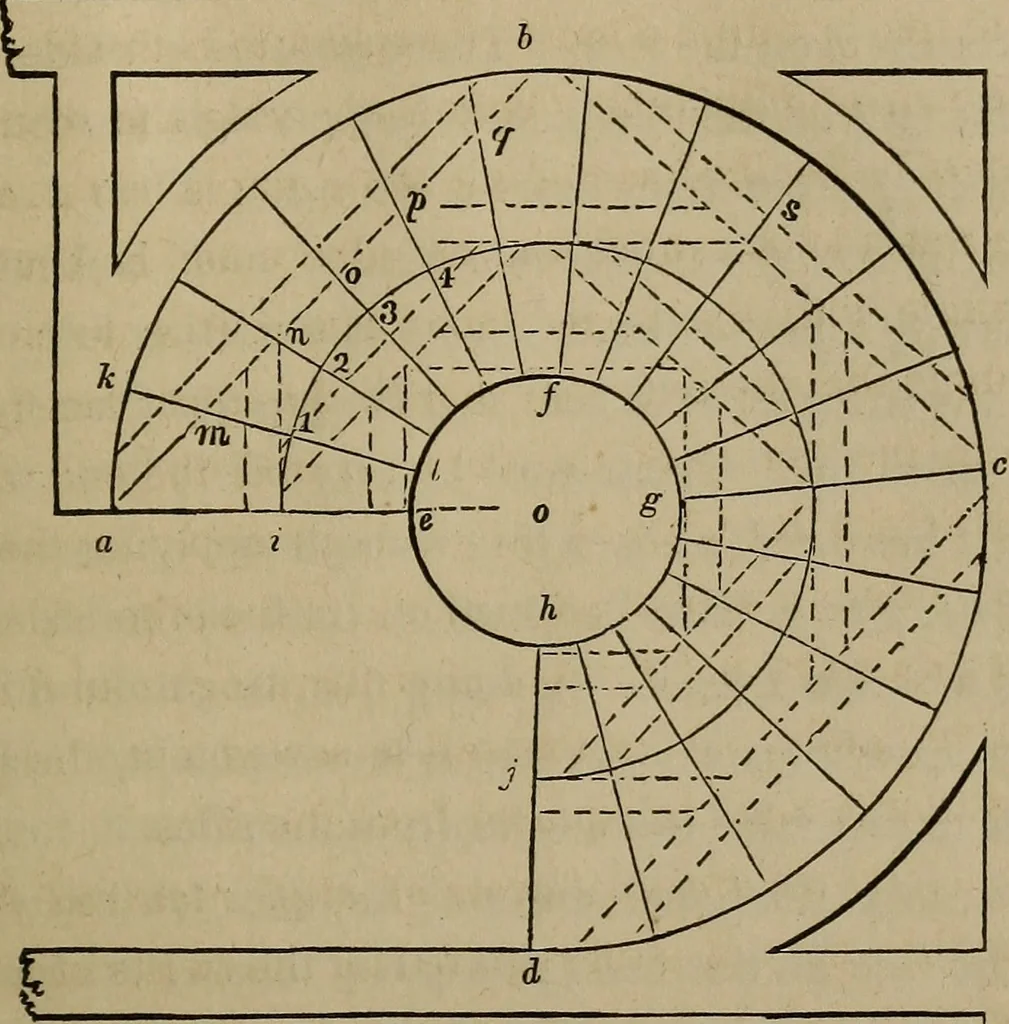

ers. WINDING STAIRS. 469.—Winding stairs have steps tapering narrower at one endthan at the other. In some stairs, there are steps of parallel widthincorporated with tapering steps ; the former are then caMed flyersand the latter tiinders. 470.— To describe a regular geometrical winding stairs.In… … Fig. 303 U^ a e, is given as the face of the first riser, and the point, j^ for thelimi: of the last. Make e i equal to 18 inches, and upon o, with0 i for radius, describe the arc, ij; obtain the number of risersand of treads required to ascend to the floor aXj, according to Art.454, and divide the…
