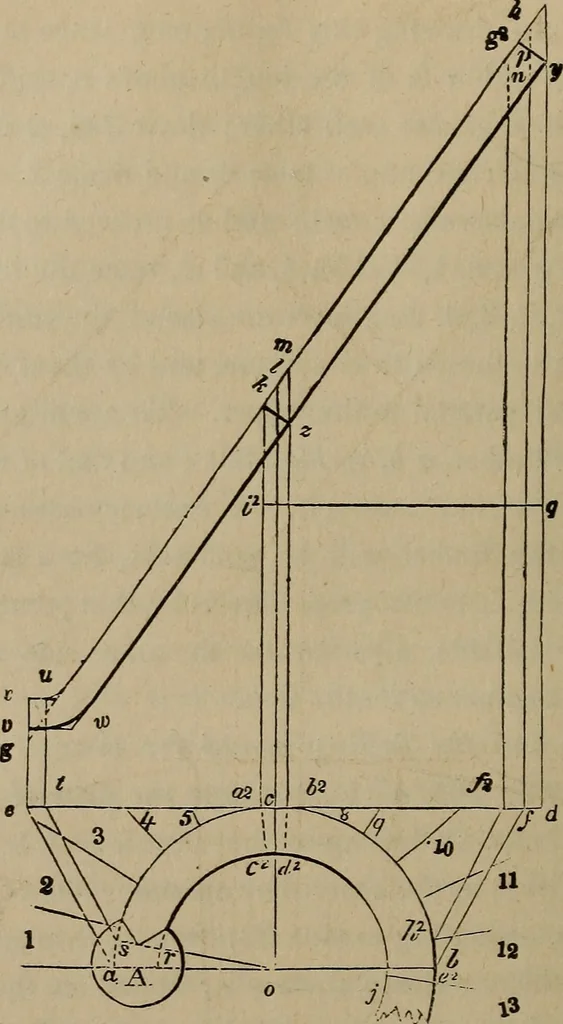

off the angle at w ; at a distance equal to the thickness of * In the above, the references, a^, b^, &c., are introduced for the first time. During thelime taken to refer to the figure, the memory of the form of these may pass from the mind,while that of the sound alone remains; they may then… … Fig. 305. the rail, draw v wy^ parallel to xui; from the centre of the plan,0, draw o I, at right angles to e d ; bisect hn in p, and throughp, at right angles to g i, draw a line for the joint; in the samemanner, draw the joint at k ; then a: y will be the falling-mouldfor til at part of the rail…
