The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry (1852)

Hatfield, R. G. (Robert Griffith), 1815-1879 · New York, J. Wiley · leaf 227

An illustration from The American house carpenter: a treatise upon architecture, cornices and mouldings, framing, doors, windows and stairs. Together with the most important principles of practical geometry, 1852, leaf 227

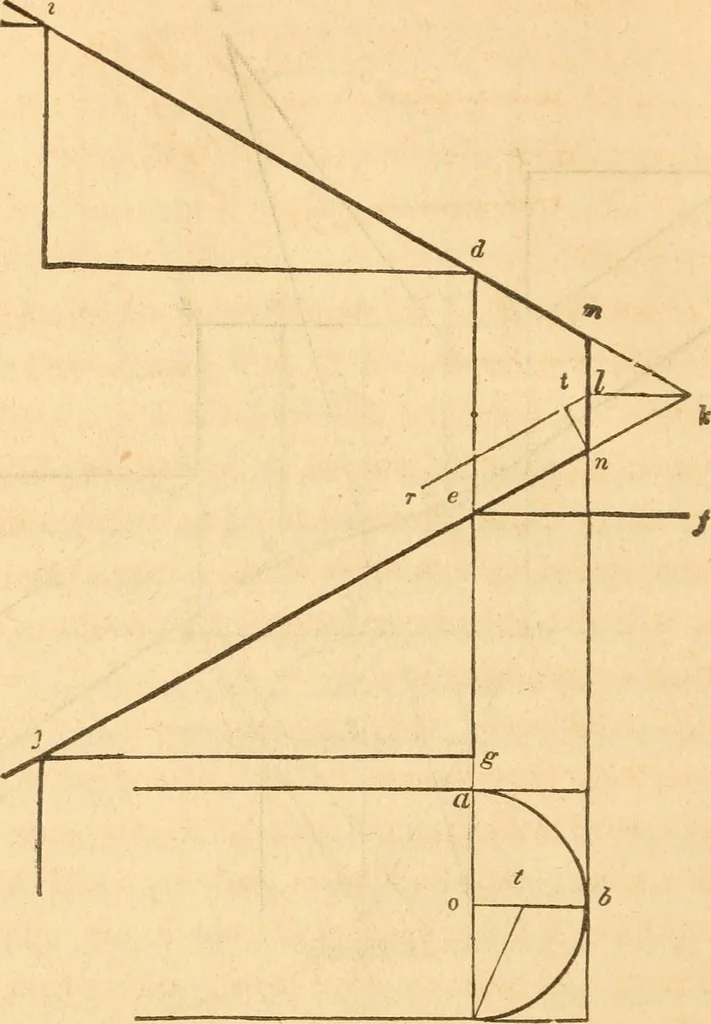

a- ^ Piir sm. 27 210 AMERICAN HOUSE-CARPENTER. … Fig. 261. 367.— To find the face-mould for a round hand-rail to plat-form stairs. Case 1.— When the cylinder is small. In Fig.261, J and e represent a vertical section of the last two steps of thefirst flight, and d and i the first two steps of the second flight, ofa platform stairs, the line, e /,…
