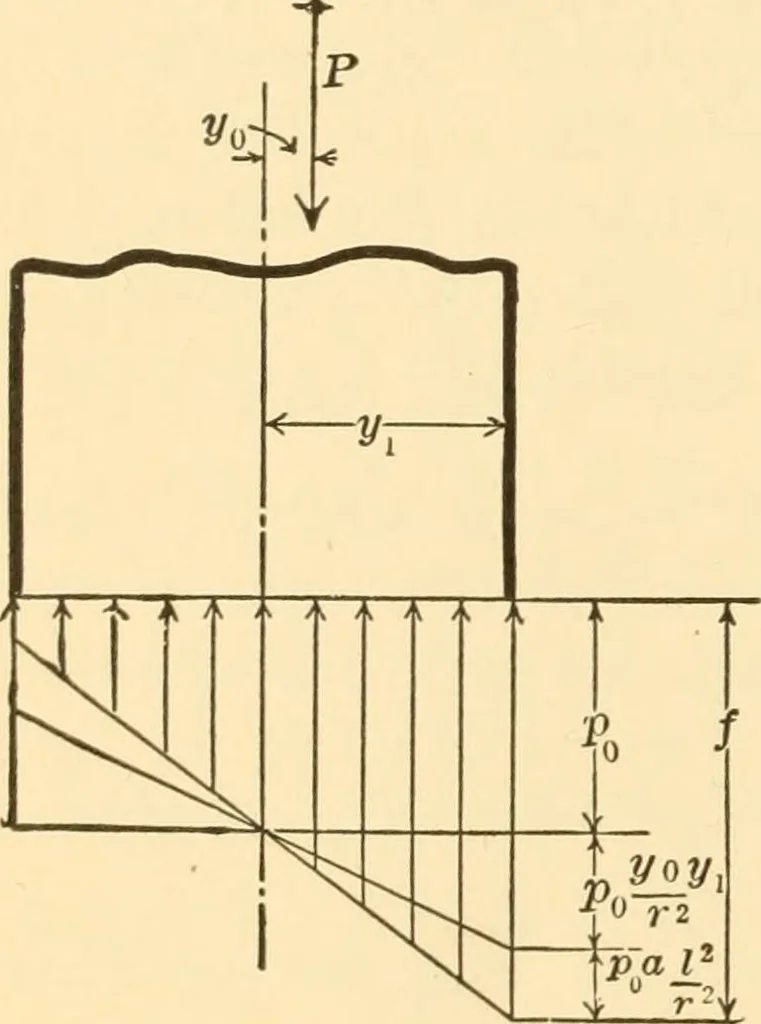

for an equallylarge value of r2 ought to be found at the ends also. Henceswelled columns and struts are but little used. 135. Column Eccentrically Loaded. —When the load is applied eccen-trically to a long column, the maxi-mum unit stress found in the extremefibre on the concave side must be dueto… … Fig. 60 From § 124, f = j[i+-rr)=Po + Po PI l2\ I2 From § 130, / = £ ^i+a^j =po + poay2. COLUMNS, POSTS, AND STRUTS. 149 If then the column is long and the line of action of P deviatesfrom the original axis of the column by a distance y0, the threeexpressions, po, poyoyi+r2, and p0al2 +r2 should be…
