Hatfield, Robert Griffith, 1815-1879. [from old catalog] · New York & London, Wiley and Putnam · leaf 232

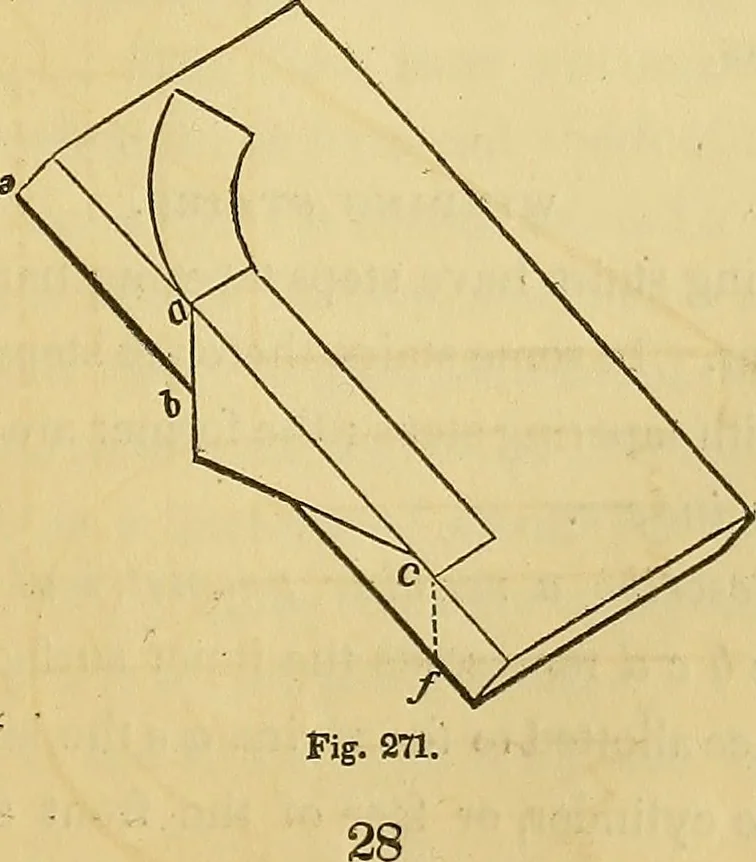

e previous examples^ Mak^c i and cj, each equal to c i at Fig. 269, and draw the lines, i m,andj^, parallel to c k ; make n e and n d equal tone and nddiiFig. 269j and draw d o and e ^, parallel to n c ; also, through k,draw 5 g, parallel ton c ; then, in the parallelograms, ms do andg s e I, find… … 218 AMERICAN HOUSE-CARPENTEE. 374.—To apply the mould to the pla7ik. The mould obtainec?according to the last article must be applied to both sides of theplank, as shown at Fig. 271. Before applying the mould, theedge, e/, must be bevilled according to the angle, c t x,dX Fig.269 ; if the rail is…
Carpentry · Architecture
