American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions (1914)

Colvin, Fred H. (Fred Herbert), 1867-1965, Stanley, Frank A. (Frank Arthur), b. 1874 · New York : McGraw-Hill book company ; London : Hill · leaf 256

An illustration from American machinists' handbook and dictionary of shop terms : a reference book of machine shop and drawing room data, methods and definitions, 1914, leaf 256

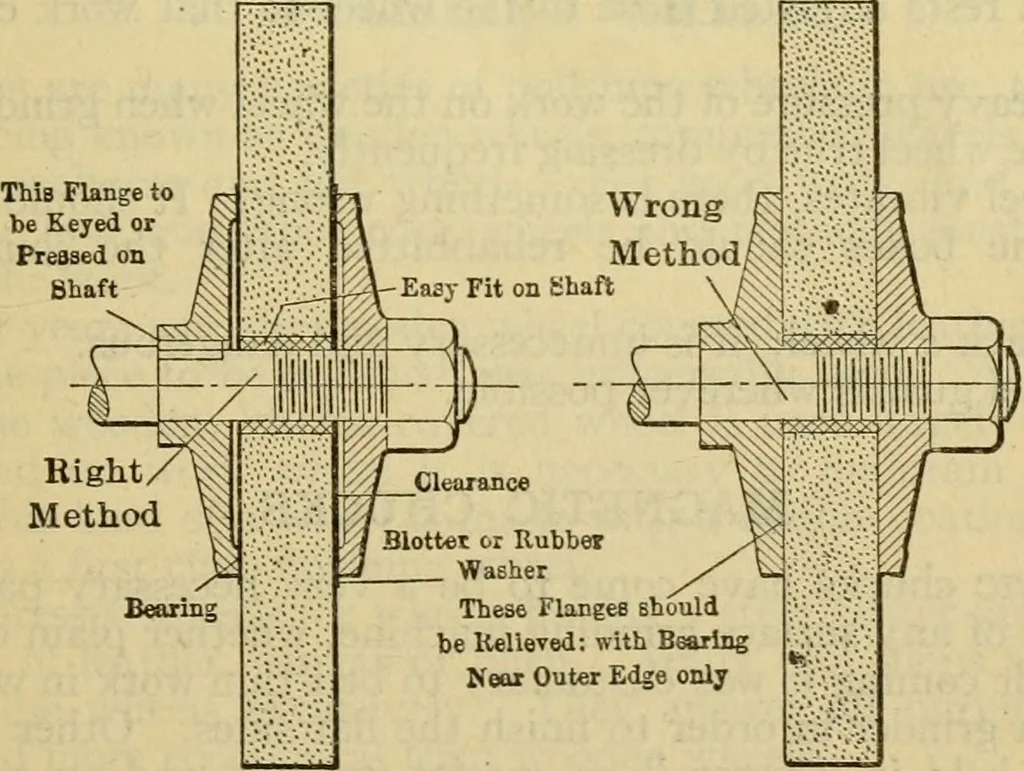

nsuresafety but in order to secure better results with the wheel. The following sizes of spindles are recommended by the NortonCompany and by some other wheelmakers, except where the grindingwheels are extra thick: Wheel Spindle 6 in. diameter and less i in. 8 in. diameter and less f in. 10 in.… … Fig. II A B Right and wrong way to mount v/heels The flanges should be reheved as at A in Fig. 11, and they shouldbe at least one-half the diameter of the wheel and have a true bear-ing at the outer edge. The inner flange should never be loose but inall cases should be fixed on the spindle. Under…

Machine-shop practice
