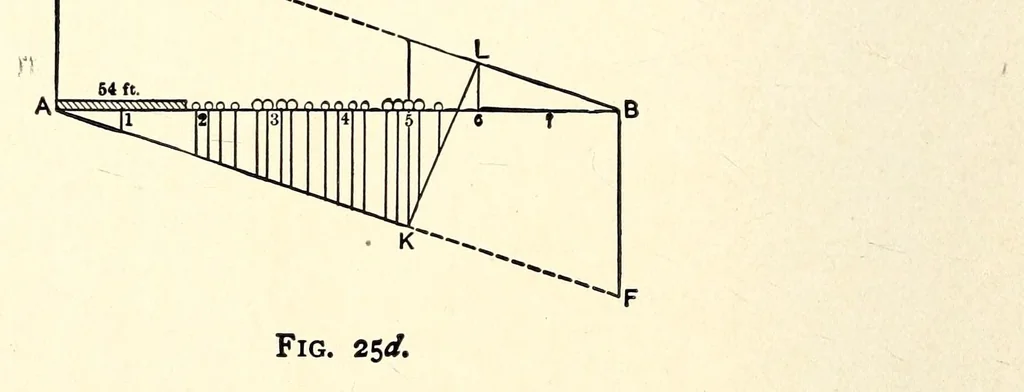

m A, it would be found that the second axle of the first locomotive must be placed at the section Q, as shown in Fig. 2 5<i, which exhibits the lower-chord panel-points numbered from i to 7. The conventional unit load g will be taken in this case at 20,000 pounds. It is represented as AG and BF… … 25(2), laid off at a scale of 10,000 pounds per inch. K is imme- diately under panel-point 5 and L is immediately above panel- point 6, hence the broken line AKLB is the influence line desired. The vertical lines are then drawn from each train concentration in its proper position, all as shown,…
