Appletons' cyclopaedia of applied mechanics: a dictionary of mechanical engineering and the mechanical arts (1880)

D. Appleton and Company, Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 224

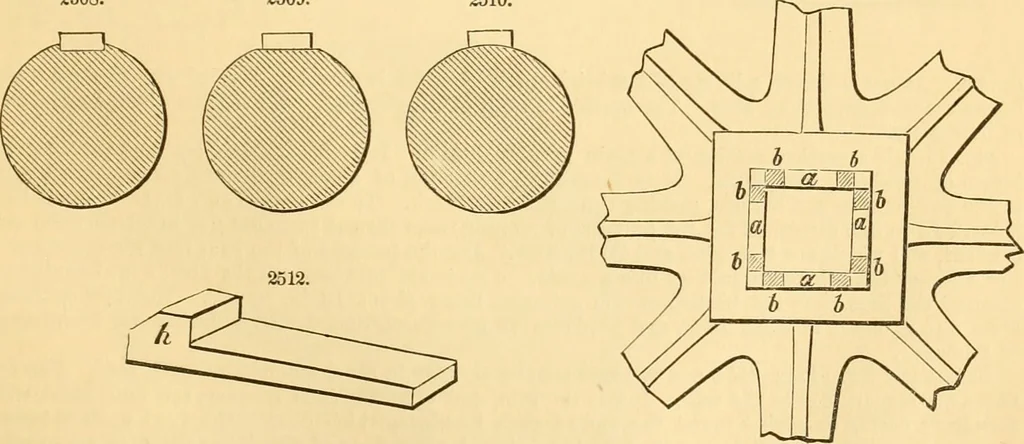

An illustration from Appletons' cyclopaedia of applied mechanics: a dictionary of mechanical engineering and the mechanical arts, 1880, leaf 224 — wheel. f .25.10.15 1 .34.125.215 1 .43 .15 .28 H.52.175.345 If.61.20.41 1* .71 .225 .4S5 H .80.25.55 21.89.275.615 2f.98.30 .68 2* 1.07.325.745 2J 1.16.35.81 311.25 .375.875 Note.—The depth sunk in the shaft and in the wheel is measured at the side of the key, and not at its centre. The breadth of… … one-eighth inch to a foot in length, and the same must be given to the key-seat in the boss of thewheel, and not to the key-bed in the shaft. Fig. 2511 illustrates the method of keying a wheel to a square shaft. It is used for shafts that 214 KIBBLES. 2513. 2514. B UlJ n. \i

Mechanical engineering -- Dictionaries
