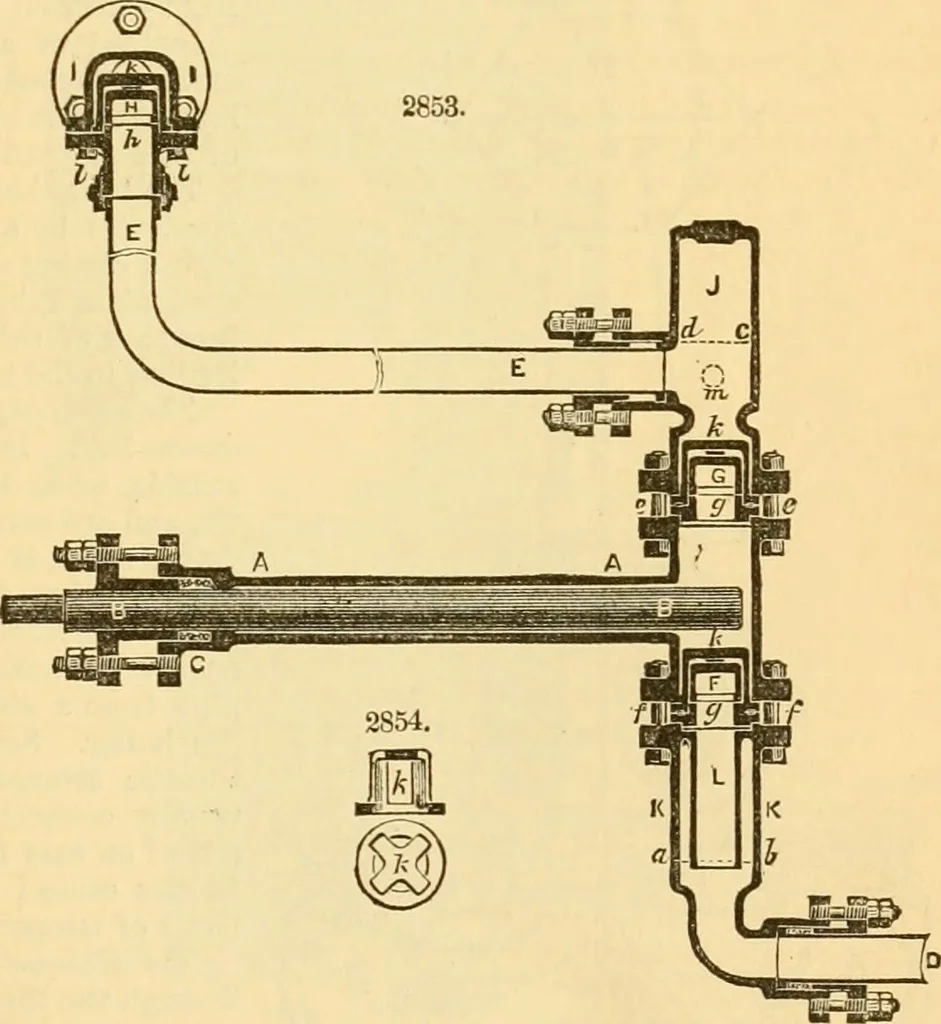

An illustration from Appletons' cyclopaedia of applied mechanics: a dictionary of mechanical engineering and the mechanical arts, 1880, leaf 326 — E, Figs. 2842, 2843, and 2846). These are coupled to the pipes and connectthem to the tank; they are operated by rods and handles. The handle for the right-hand side lazy-cock is provided with a quadrant D, Fig. 2846, on which the amount of opening is shown by afinger. Injectors (see Injectors) are… … 312 LOCOMOTIVE, DESCRIPTION OF PARTS OF THE. 2855. throttle-valve h, Figa. 2847 and 2848, usually placed in the steam-dome, and sometimes in thesmoke-box. In this country the form of valve almost exclusively used is known as the poppet-valve.This is made double to counterbalance the steam-pressure,…
