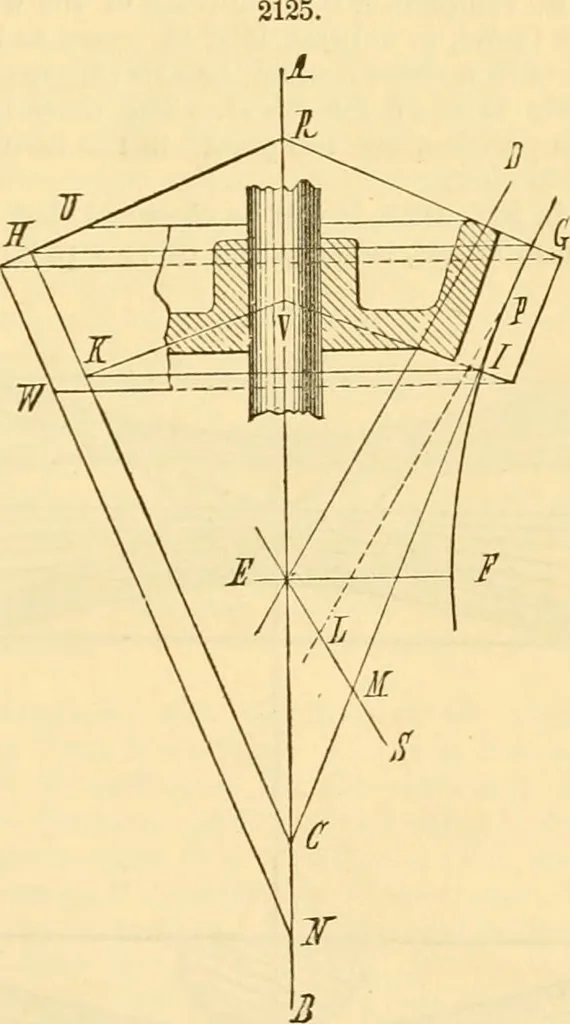

An illustration from Appletons' cyclopaedia of applied mechanics: a dictionary of mechanical engineering and the mechanical arts, 1880, leaf 34 — Having in this manner drawn the describing hyperboloid, we have next to find, by means of it, thetooth-surfaces. The principle of the method of doing this is illustrated in Fig. 2124. The pitch-surface is the one with the vertical axis; the large circle in the top view is the upper base, and…
