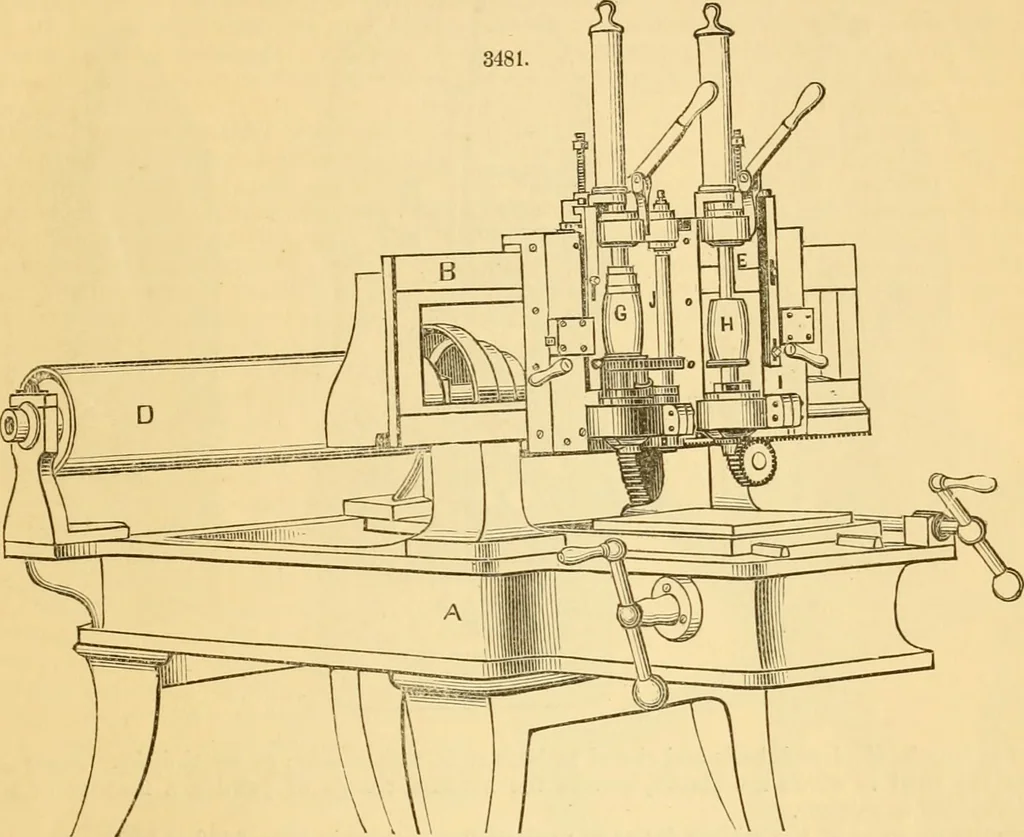

By moving the table and the slide carrying the spindle, the guide-pin is traversedaround the edge of the templet, and the revolving cutter cuts the work to the size and shape of thepattern, because the motion of the cutter around the work is identical with that of the guide-pinaround the pattern.… … ing cutter to that beneath the guide-pin. In the machine illustrated this is obviated by the introduc-tion of the spindle /. The provisional pattern is chucked to the table beneath the spindle £, andthe piece of metal to form the permanent pattern is placed beneath the spindle J. The guide-pin…
