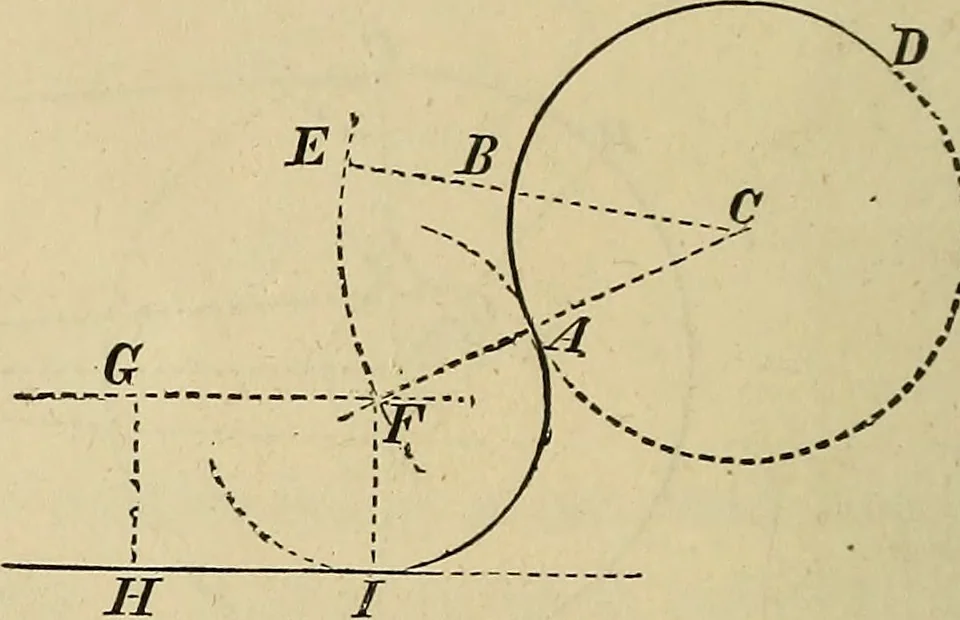

Fig. 114. Peob. XXIY.—To -fill uj[> the angle of a straight line and a circle^ witha circular arc of a given radius (fig. 114). In the given circle A D draw a radius 0 B and produce it, set off B Eequal to the radius of the required arc, and on the centre C with the radiusC E, describe the arc E…
