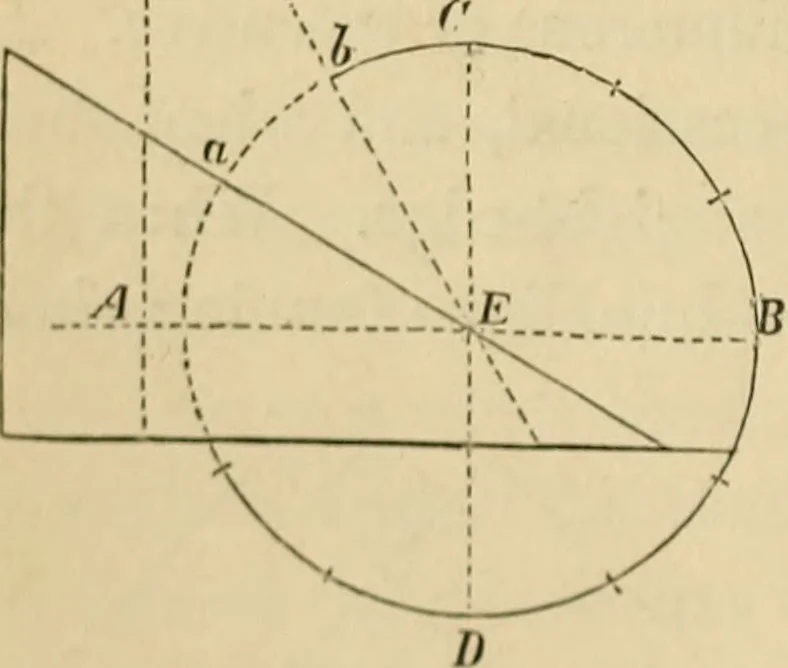

p in a wheel (fig. 146) :—Draw two diameters, A B, CD, parallel to the two edges of theboard ; in the quadrant A C, draw radii E <?,E Z>, with the long and tlie short sides of thetriangle against the square-blade. Tliose willdivide tlie quadrant equally ; and the sameconstruclii.n l.cing… … lu. IJO. GEOMETEICAL PEOBLEMS. C5 lines, equally distant, will be described. Should tlie triangle be largeenongli to embrace tlie wliole circle at once, tlie opposite quadrants A Cand B D may be divided with the same setting of the triangle. A short method of dividing a line or surface into a…
