Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 346

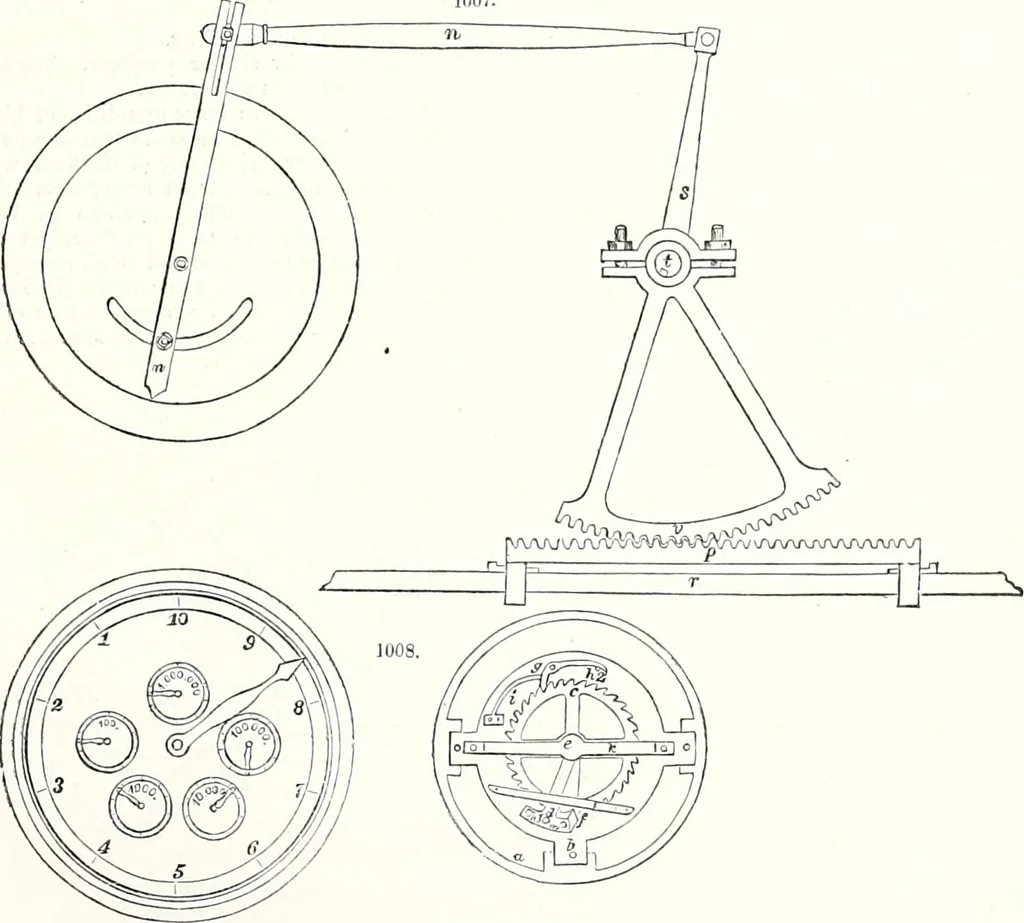

rise when the other 6inks, the warp becomes divided in two portions, one abovethe other, near the anterior end of the loom. COUNTER. See Gas. COUNTER PROPORTIONAL, by W. H. Lindsay. The construction and operation of this instru-ment, will, with the aid of the drawing, be readily understood.… … wheel v, to the length of the stroke made by the rack r. To facilitate the adjustment with the greatestaccuracy, the radius of the counter-arm n 2 can be lengthened or shortened by means of the pin w, whichcan be shifted up or down in the slot; and when the proper distance is obtained, made last by…
