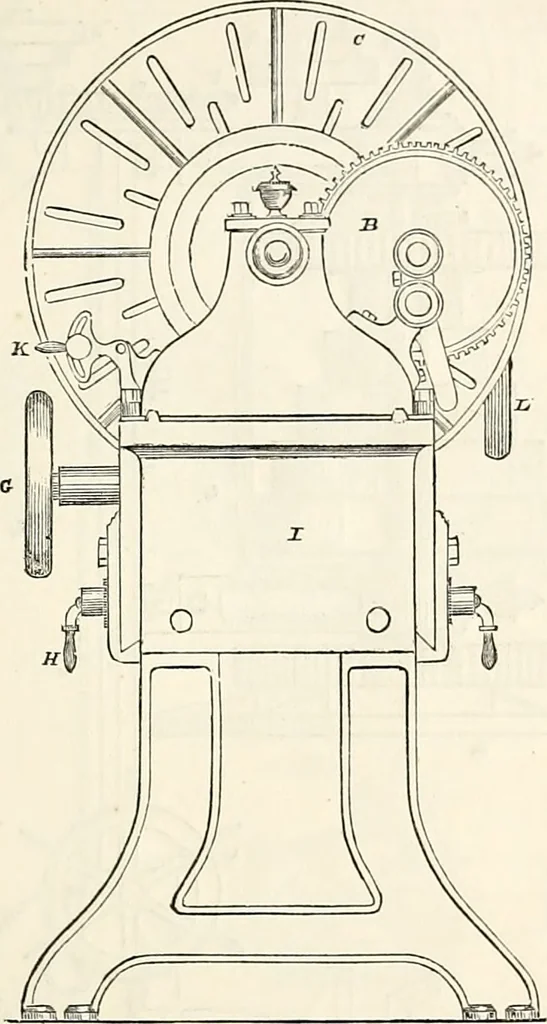

NG. Figs. 2509 and 2610. I, tlie main bed-piece, supported by twocast-iron standards. D, head-stock, -which carries the spindle and cone-pulleys A. G, sliding-frame that supports rest P. This frame is traversed backward and forward by means oitlie band-wheel B, which has a pinion on the other end… … C, face-plate on liva spindle, to wliich ths work ij fastened by bolts when drilling or reaming.F, tail-stock, with a traversing spindle, worked by the hand-wheel M, which turns a screw inside ofspindle in the usual way, for pressing ui tha driUj or reamers, ic. L, hand-wheel on a screw for setting…
