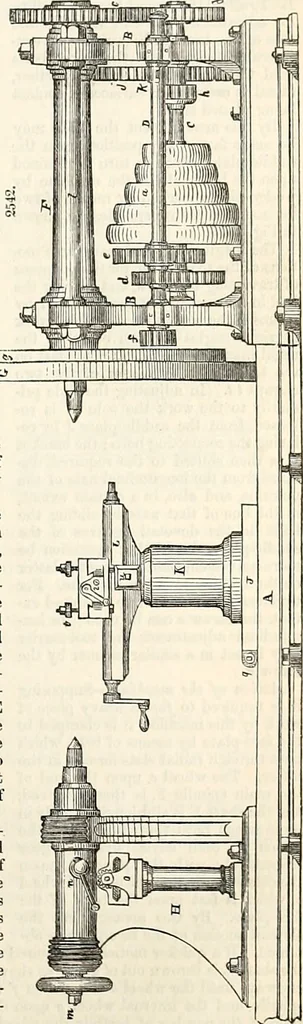

M, fixed upon the bed-plate of themachine, as shown in Fig. 2546. The pinion which worksinto the rack is kejed upon the spindle p, carried in bearingsattached to the sole of the head-stock. On the same spindleis a small bevel-wheel, which geers with a pinion on thelower end of a vertical spindle,… … 198 LATHE. thereby completing the connection witli the fixed rack M. This arrangement is fully exhibited in dottedlines in Fig. 25IC. The same rf.ck M serves also for moving the side-rest K in a longitudinal direction, by means of apinion keyed upon the shaft g, shown in Fig. 2543. This shaft is…
