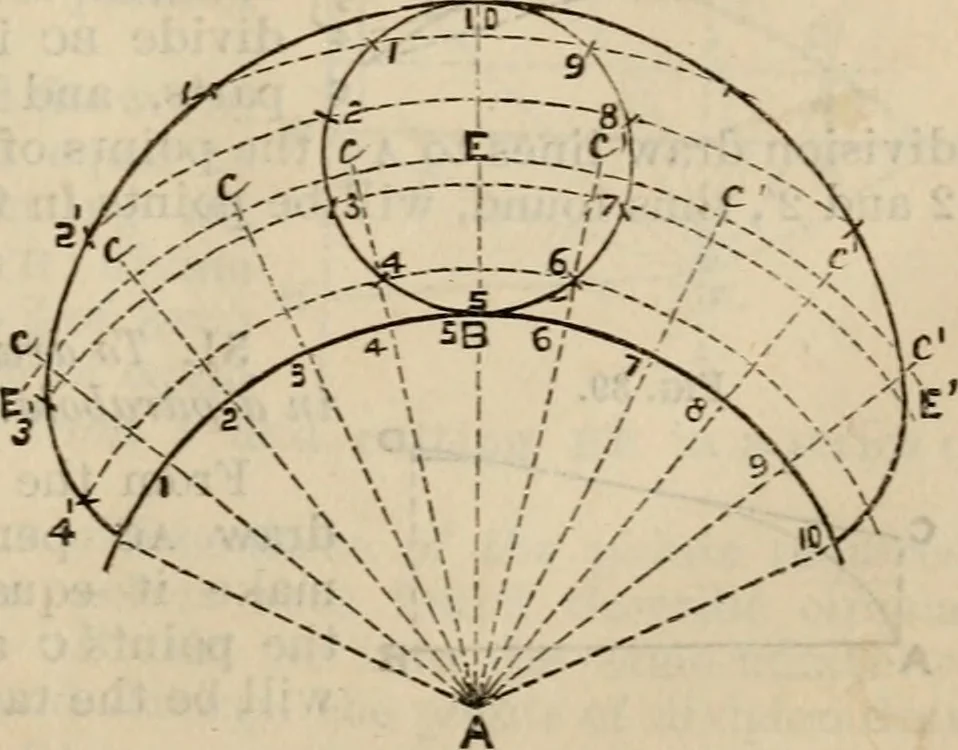

16 GEOMETRY Let BD be the generating circle, and ab the directing circle ;.divide the generating circle into any number of equal parts—say, 10—as 1, 2, 3, &c., and set off the same distances round thedirecting circle ; draw radial lines from A through these lastpoints, and produce them to an…
