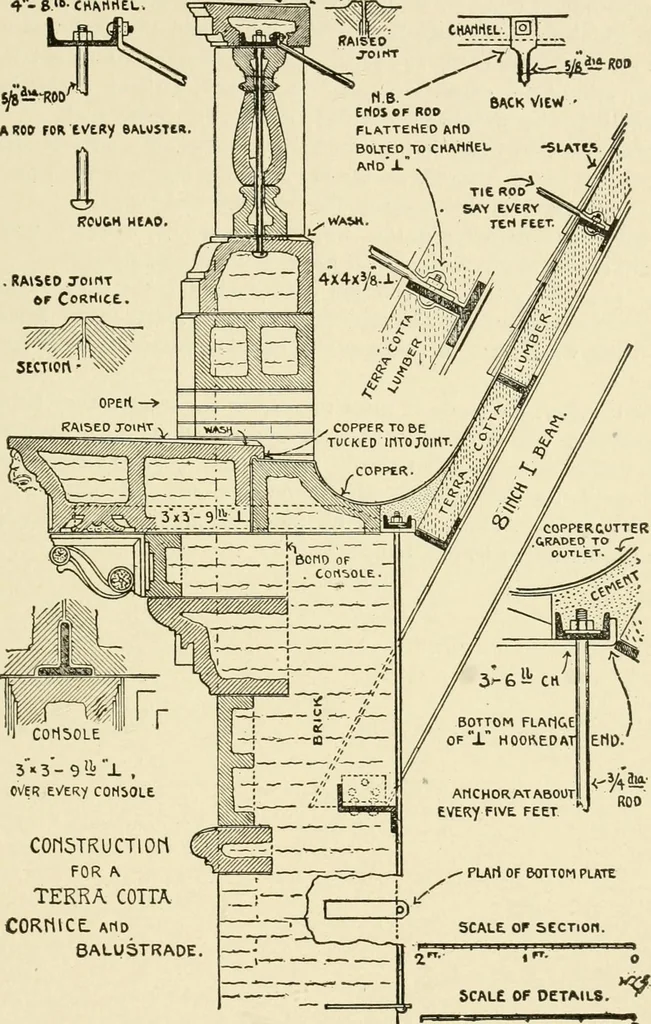

inverted tee resting upon them is not only quite unnecessary, butpositively suicidal, so far as the terra cotta is concerned. A plan,such as is shown in sections A A, BB, and CC, would have been muchsimpler, less expensive and avoided the objections above noted. ARCHITECTURAL TERRA COTTA. 257<*… … corisTRucTior FOR A TERRA COTTACORNICE. ArtD BALUSTRADE. Fig. 1743. 257 BUILDING CONSTRUCTION. The modillion in this case would be made with four walls andone horizontal partition, forming two open chambers as at CC. Intothe upper one of these we would insert a 3^ by 5-inch I-beam, theend of which…
