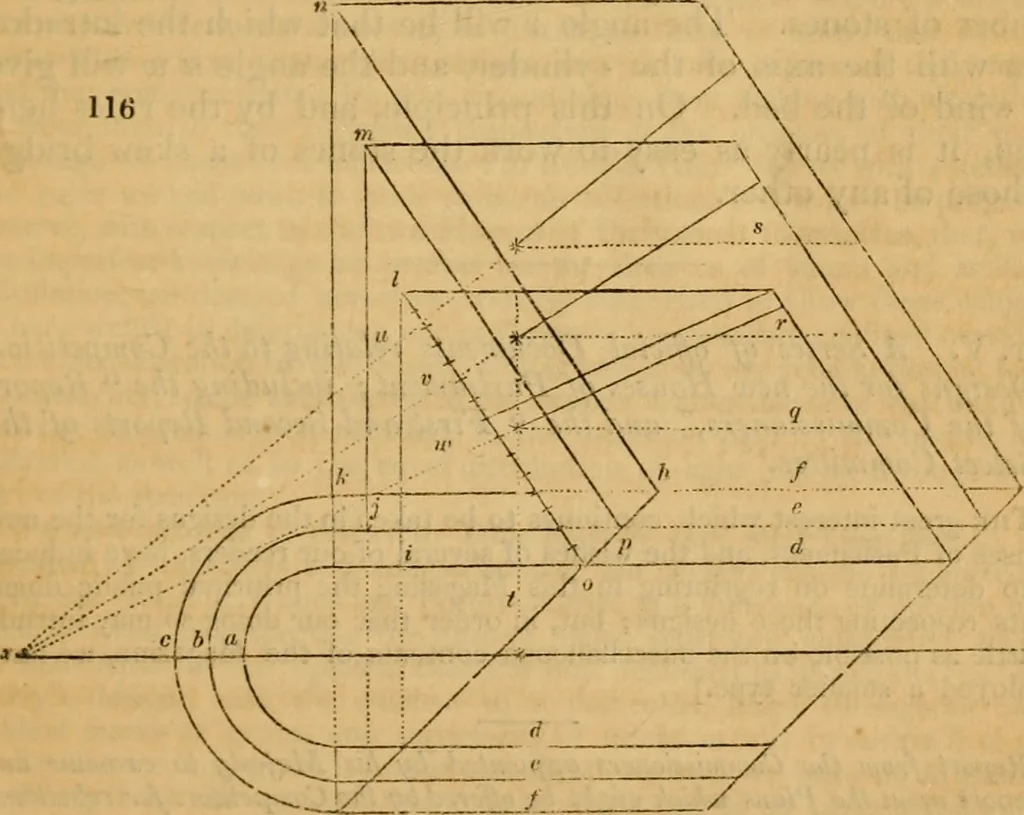

scfa very hard nature. It has been shown, that, by developing all the various surfaces,instead of having to think of complicated spiral lines, they areat once reduced to straight ones ; and I will now very brieflyshow how simply the data necessary for the construction of askew arch may be obtained… … are the transverse sections; let these cylinders be cut by thestraight line g /z, at the angle of askew, that is, the angleformed by the two roads crossing each other; and from thepoints z, 7, k draw three straight lines at right angles to theaxis, and of such lengths that i I shall be of equal…
