Audels answers on automobiles, for owners, operators, repairmen ... including chapters on the storage battery, electric vehicles, motor cycles, overhauling the car, etc. Fully illustrated and indexed (1911)
Booth, Charles Edwin, b. 1849 · London, New York, T. Audel & co · leaf 231

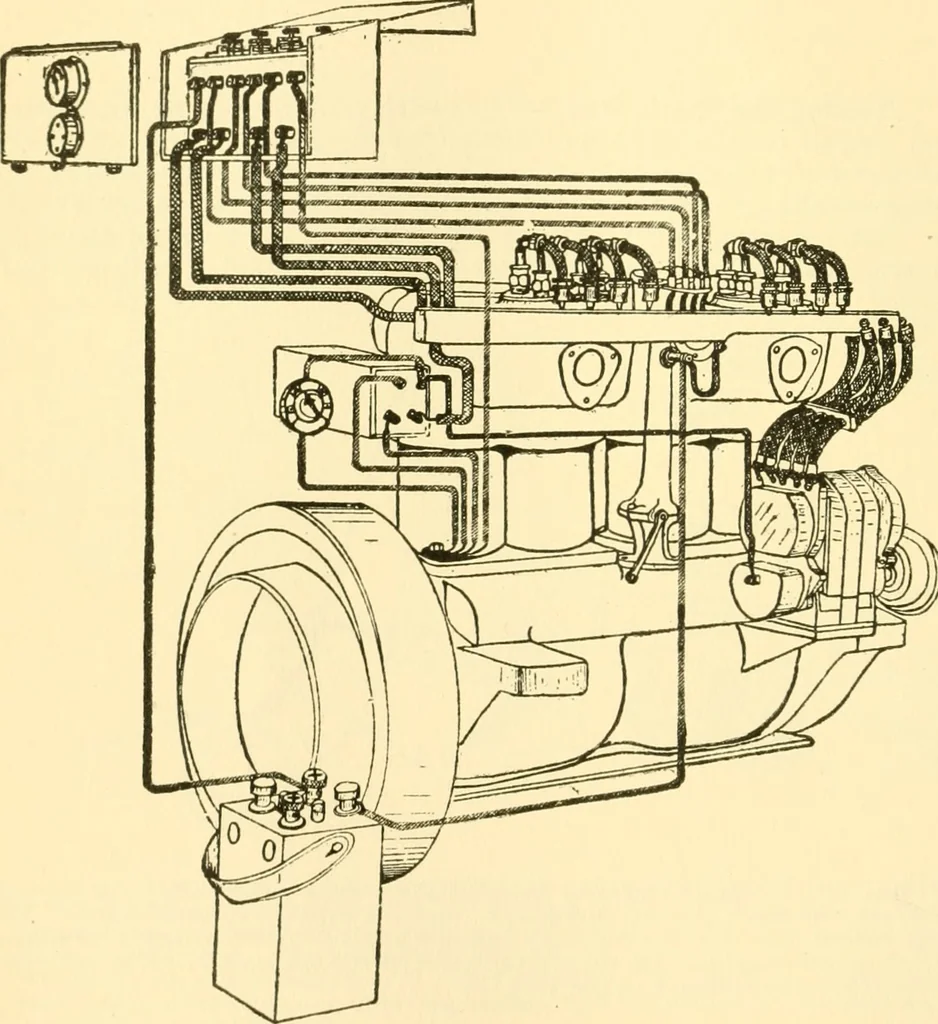

r testing at various engine speeds, it can be taken for grantedthat the plug is sound. The remaining plugs are tested in the samemanner. When a multi-unit coil is used, a faulty plug may be 204 A UDELS ANSWERS located by holding down all the vibrator blades but one, so thatonly one spark plug… … J>^. Fig. 119.—A double ignition system with two sets of spark plugs asfitted on Peerless cars. The current, which is furnished by an Eisemann lowtension magneto, passes through an induction coil on the dash, giving a hightension current at the spark pkigs. In addition to the magneto and…
