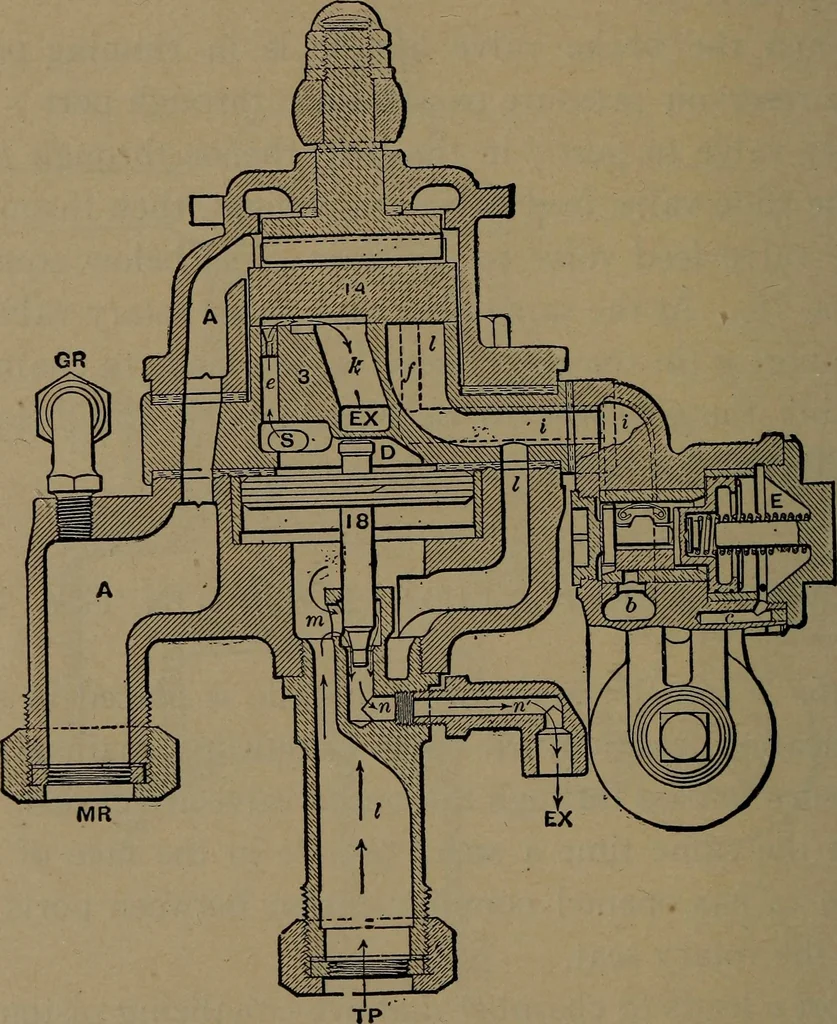

itted to flow from chamber d and the equalizing reservoirto the atmosphere, reducing the pressure on top of equaliz-ing piston 18. The train pipe pressure below equalizingpiston 18 now being greater than that above it, the pistonis moved upward, unseating its stem, permitting air from 182 RUNNING… … Fig. 45.—Service Application G-6 Automatic Brake Valve. underside of equalizing piston 18 below the pressure re-maining in chamber d, equalizing valve 18 will be forcedto its seat by the greater pressure in chamber d, thusshutting off the train pipe exhaust. EMERGENCY POSITION G-6 TYPE 183 LAP…
