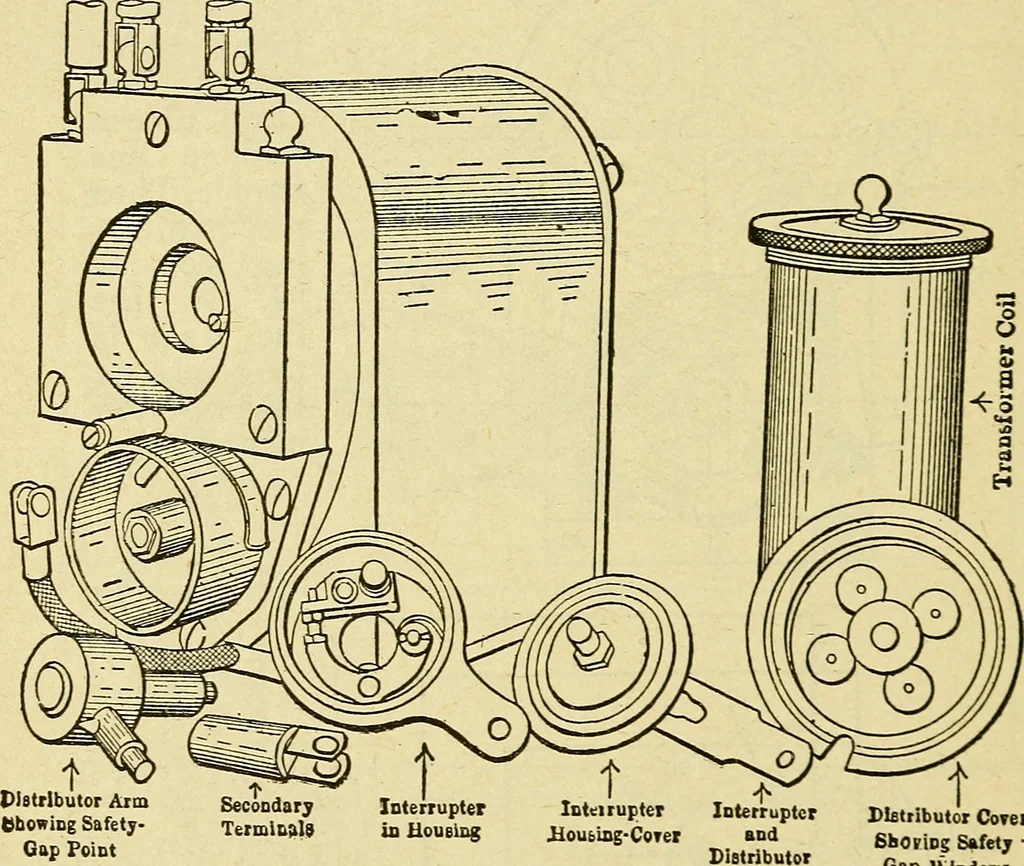

termittently passed betweenthe contact points at G and H, breaking the primary circuit at I-Jtwice every revolution and at a time when the voltage of the arma-ture was at a maximum. Every break caused a high tension spark atthe plugs. A ground switch S mounted on the dashboard stopped themotor… … t DlattibutorCoTeriSboriDg Safety ■Gap Windows Fig. 5.—Connecticut Transformer Magneto Dissembled. on the dash, a low tension wire. Very simple when compared to othertransformer type magnetos. The number of leads to the plugs wouldbe the same with any magneto. Another magneto in which the…
