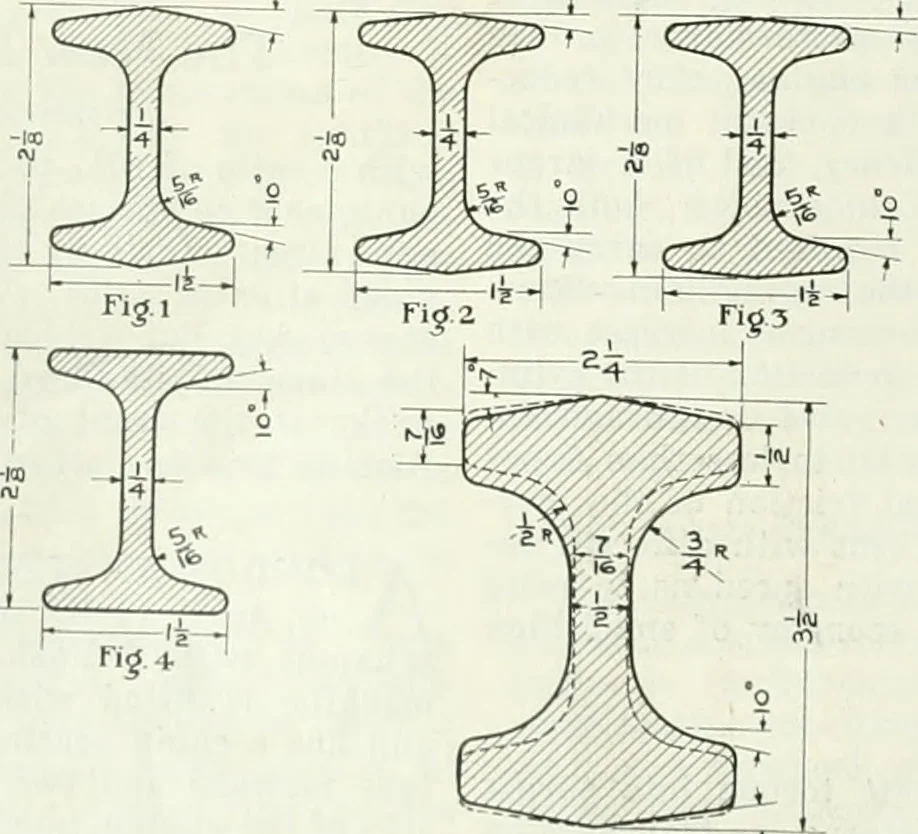

ed axle sections is 10 deg.,this angle being advocated bythe forge shops as best adaptedto quantity production, as it ob-viates sticking in the dies dueto the contraction of the forgingin the die-block. Since the con-traction of the forging in cool-ing is responsible for this diffi-culty, it is… … Figs 1, 2, 3 and 4—Axle sections with variousangles of draft. Fig. 5—Changing the axle sec-tion shown, in heavy lines to conform to dottedlines decreased axle weight 6% lb. without mate-rial decrease in strength on the outside of the flange would not only be practicablefrom the forging standpoint…
