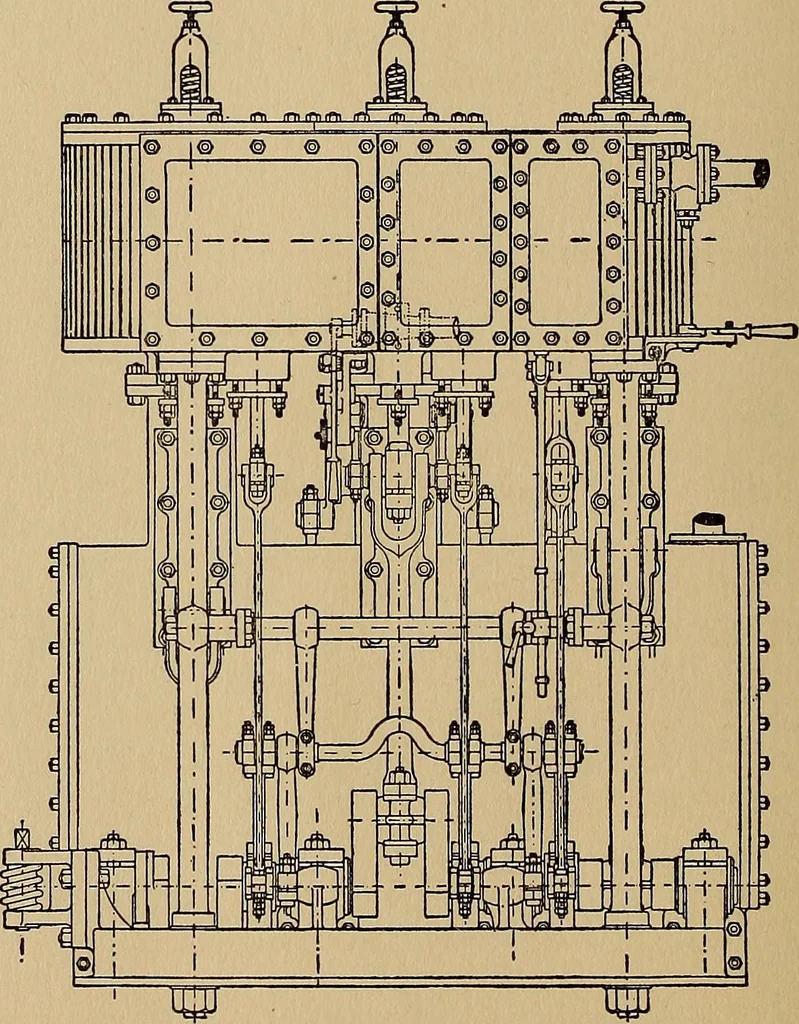

ell of the engine,it is evident that if the injection water is of acharacter which would be injurious to the boilerif pumped into it, there is then a serious objectionto a jet condenser. The difficulty is got over byusing a surface condenser. In marine engines where the injection water is taken… … Fig. 210—Triple Expansion Marine Engine, Side Elevation. STEAM ENGINES 135 erally made of rolled brass. This form of con-denser contains a large number of tubes, whichpass from one end of the condenser to the other.The tubes are made of brass, and are solid drawn,and they are sometimes tinned…
