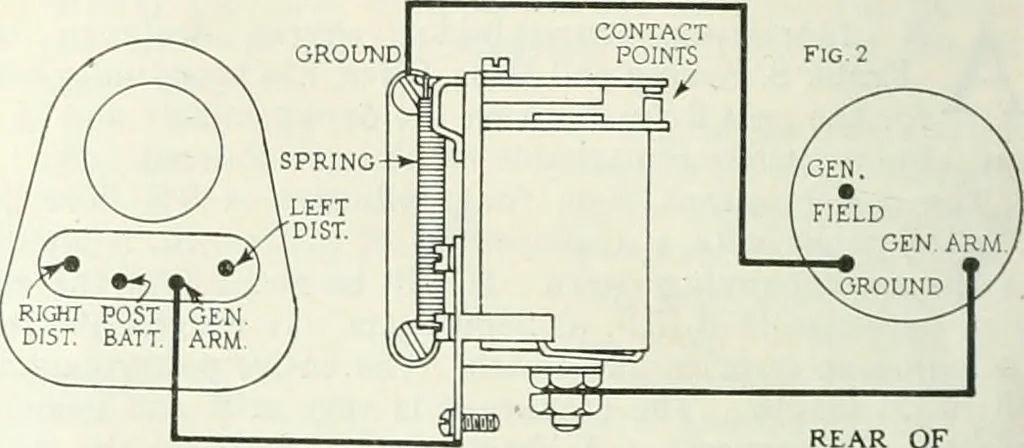

s com-pleting the circuit between the generator and the bat-tery. After the closing of the contact points the opera-tion of the electrical equipment is exactly similar to thepresent type of installation with the exception that asmall amount of current is flowing through the voltagecoil to ground.… … REAR OF SWITCH PLAN VIEWGENERATOR CUT-OUT REAR OFVOLTAGE REGULATOR armature is drawn back by the spring and the contactpoints are separated, opening the circuit from the bat-tery. The clearance between the contact points should beabout 0.018 in. The voltage required for the closing ofthe contact…
