Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 182

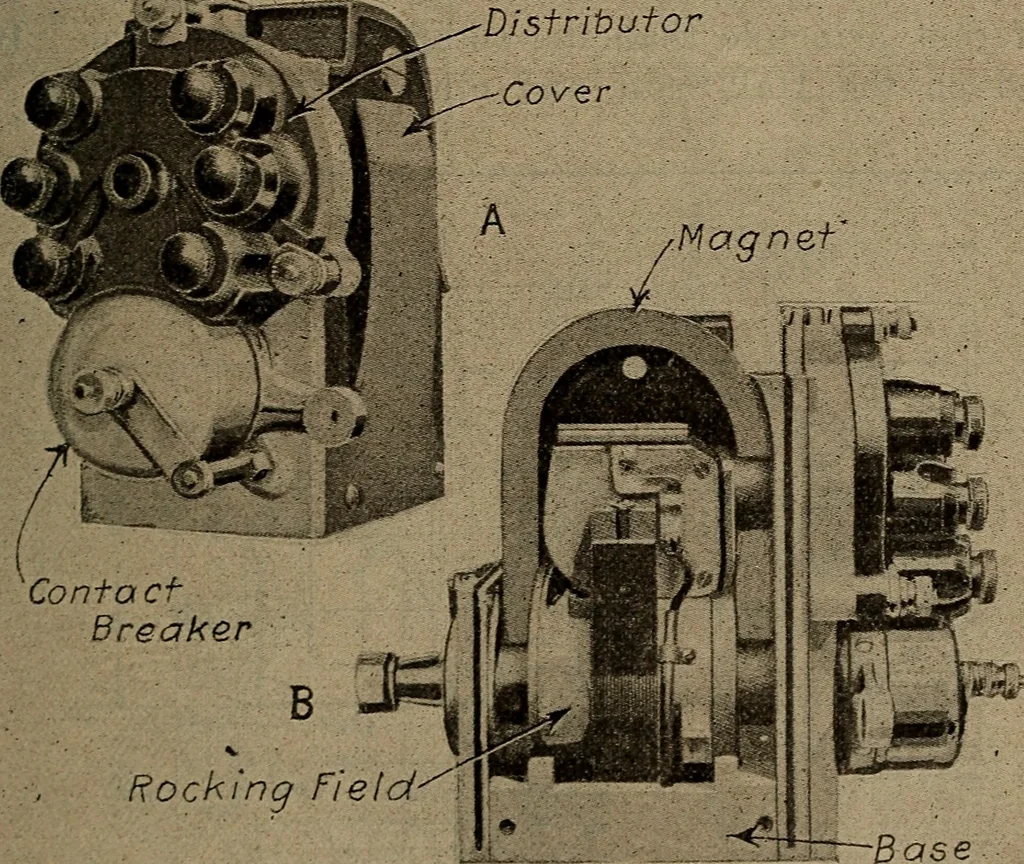

he insulation, fouling due to carbon, or too largeor small a spark gap. To clean the plugs a stiff brush Locating Magneto Trouble 183 and gasoline should be used about ; : and never less than %4r The spark gap should beToo small a gapmay have been caused by beads of metal forming dueto the heat of… … Rocking Field ~r—Base Fig. 66.—The Dixie Model 60 for Six-Cylinder Airplane Engine Ignition. should be verified according to instructions previouslygiven, and, if necessary, readjusted. Be careful to observe that both the type VN-1 andtype N-l coils are so arranged that the spark occurson the…
