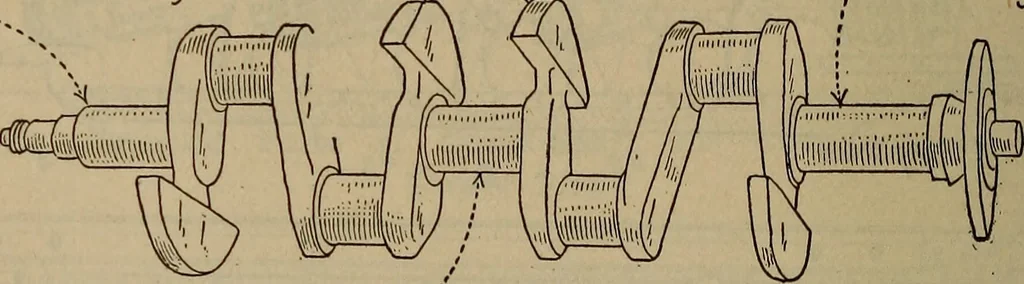

318 Aviation Engines the bottom view of a twelve-cylinder engine with bottomhalf of crank case removed is given. This illustratesclearly the arrangement of main bearings when the crank-shaft is supported on four journals. The crank-shaftshown at Fig. 138, B. is a twelve-cylinder seven-bearingtype.… … Main Bearing No,2y A ^-/■Balance weights bolted on
