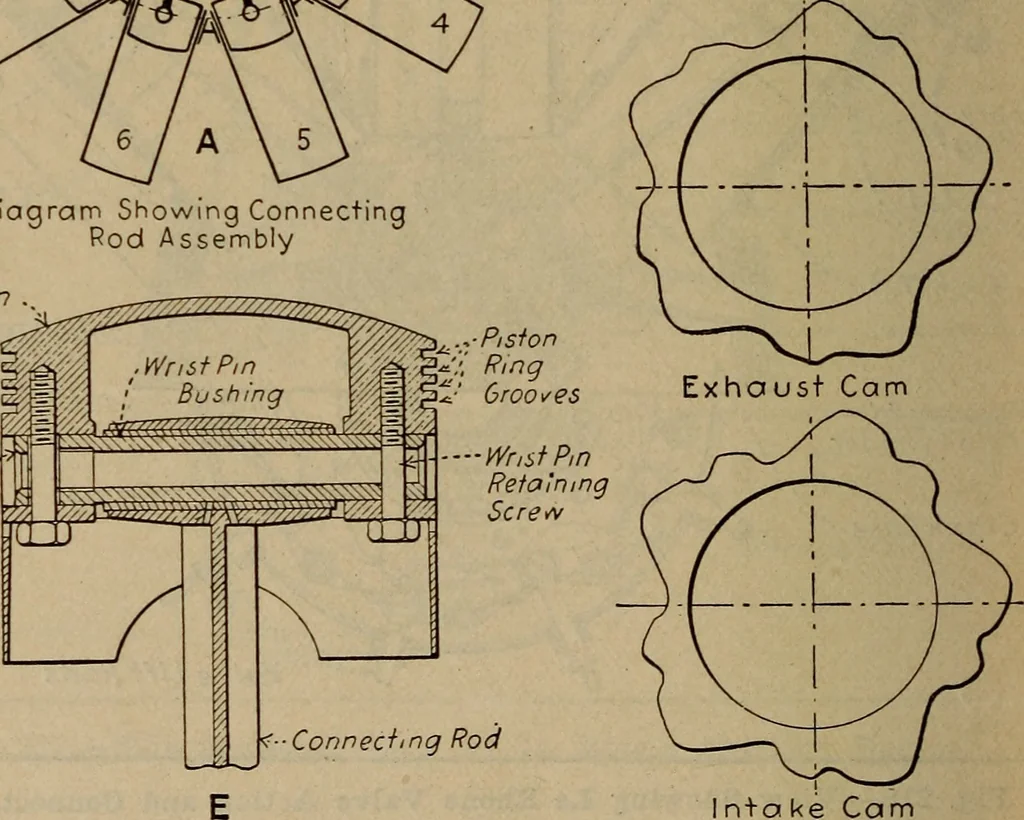

« Short- Rod End Feet Medium Rod End Feet 0n#l-4-7 B 1 on*3-6-9 Lonq Rod End Feet on*2-5-8 Arrangement of Curved Bearingson Connecting Rod Ends Diagram Showing ConnectingRod Assembly Piston . Wrist Pin- … Into ke Cam Fig. 219.—Diagrams Showing Important Components of Le Rhone Motor. has a roller at one end bearing on one cam while theroller or cam follower at the other end bears on the othercam. The valve rocker arm actuating rod is, of course,operated by this simple lever and is attached to it…
