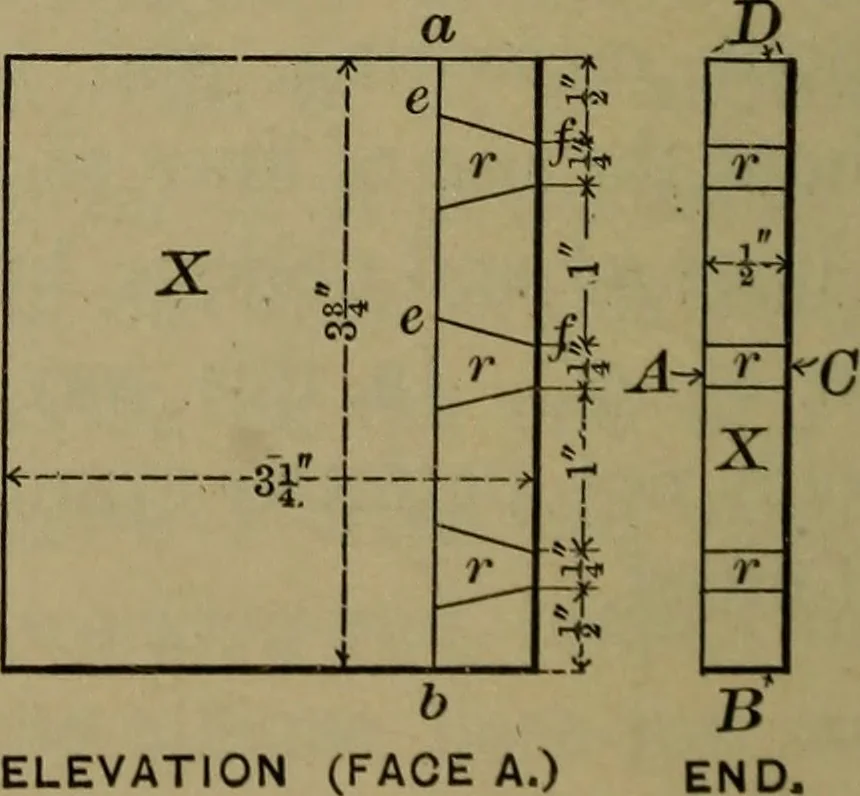

he thickness of X) from theworking-end, and continue itacross the working-edges. Set agauge at f, and from the work-ing-face A gauge the line cd onthe working-end, and extend it onthe edges until it meets the ex-tended hne al^, as shown by faceD, Fig. 202. From the working-end of X, with the same… … ELEVATION (FACE A.) BENCH WORK. 115 In cutting out around the pins (F), the dehcacy of the workdoes not demand the most dehcate chisel, but one as large asIs convenient should be used. Finish the joint to the dimen-sions given by Fig. 201.
