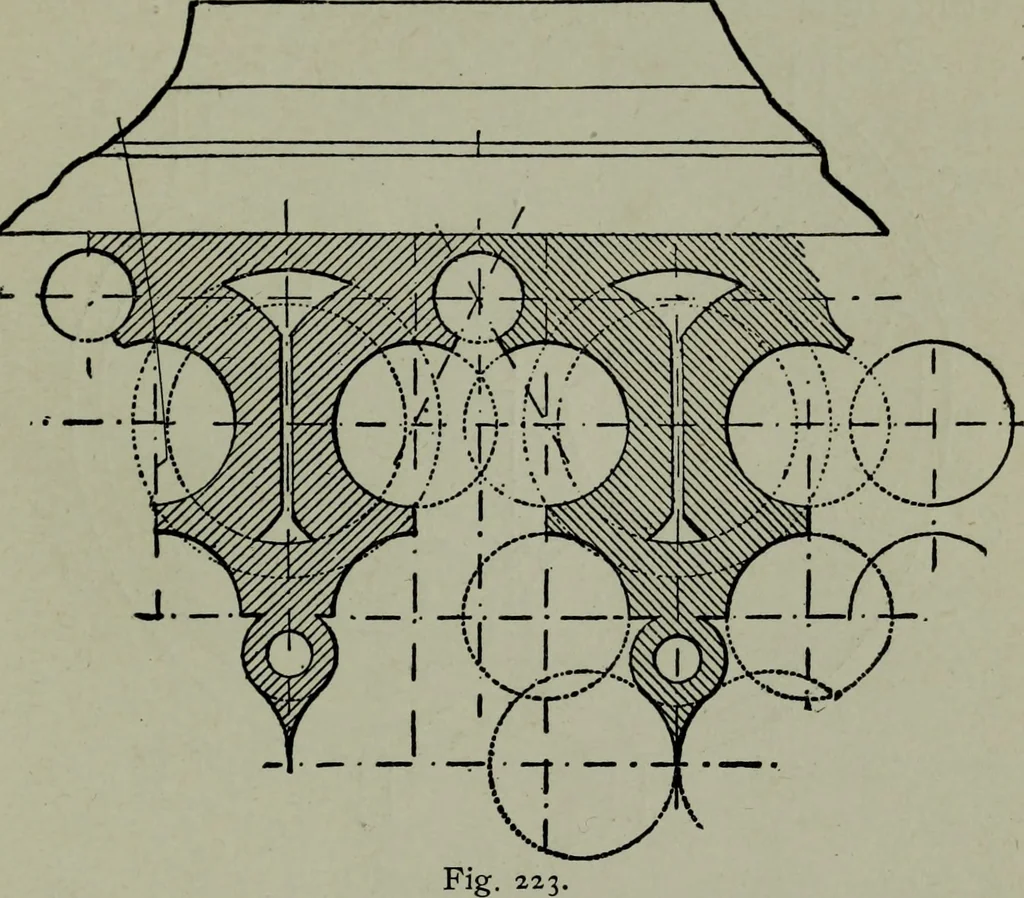

y, 1 \ >\ 1 \ Y i 1 r r A^- * Fig. 222. and will follow them up with others of a morecomplicated nature. The illustrations shown at Figs. 221 and 222 ARCHITECTURAL DRAWING SELF TAUGHT 190 show the finished work, and working diagrams.The method of drawing these curves and orna-ments is quite… … examples will enable the draftsman to describethem in quick time, and will give him an insightinto the methods employed in designing orna-ments of this kind. Another very simple design, and one thatrequires but little description on the manner 200 ARCHITECTURAL DRAWING BELF TAUGHT of making it, is…
