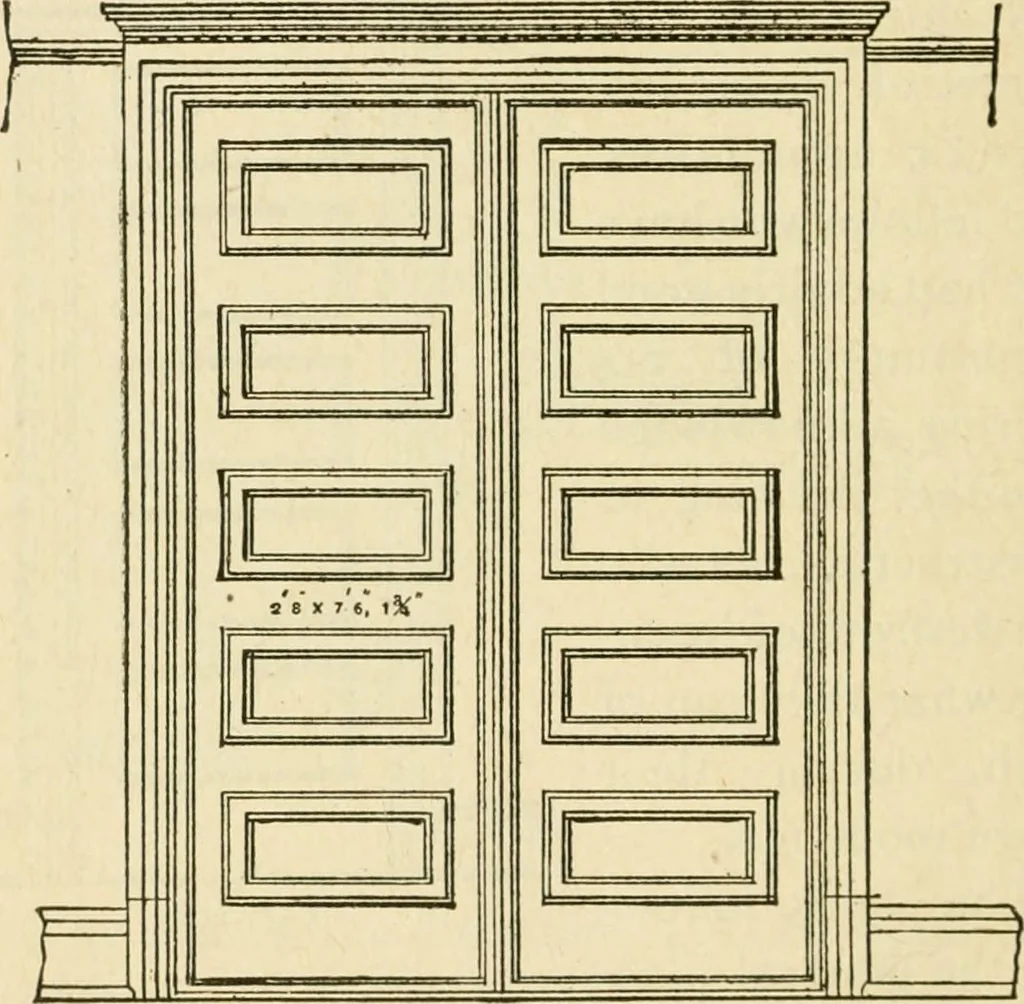

Fig. 156. 156 ARCHITECTURAL DRAWING SELF TAUGHT good example for drawing; its proportions arenearly perfect, and the style is modern. This isan inside door as shown by the base. The sliding doors shown at Fig. 157 are verynearly built in the same style as the single door … Fig. 157. shown in Fig. 156. These may be drawn to anyspecial scale, or they may be transferred fromthe illustration. I show a section of the wallinto which the sliding doors run at Fig. 158.This drawing shows the method of construction. ARCHITECTURAL DRAWING SELF TAUGHT 157 the end-wood of the…
