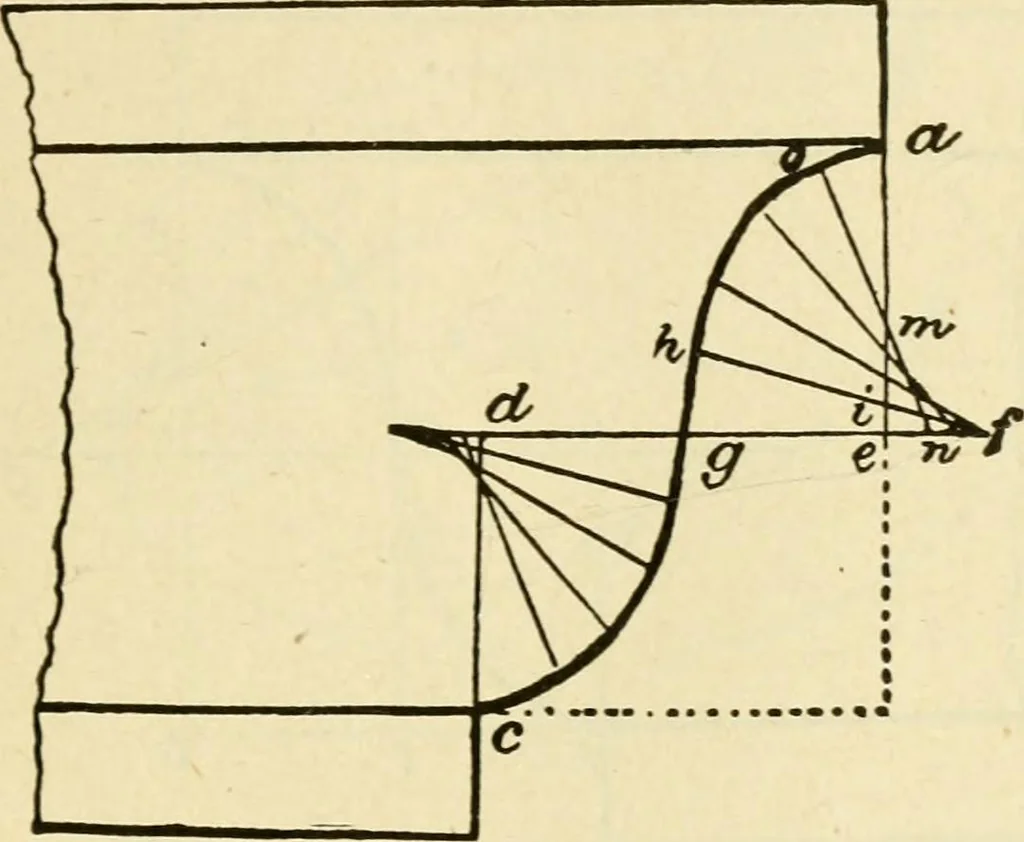

ARCHITECTURAL DRAWING SELF TAUGHT 75 opposite curves, shown by the use of ordinates. By taking a greater number of points than shown, as centers, the figure will resemble an elliptical curve. The manner of drawing the curves is shown on the diagram and may beeasily followed. … Fig. 66. Fig. 67 shows a cyma recta formed with trueelliptical quadrants. These curves may beobtained by following the lines in the diagram,or by any of the methods given for obtainingelliptical curves. This moulding can best bedescribed by the use of a trammel, an instrument1 will describe later…
