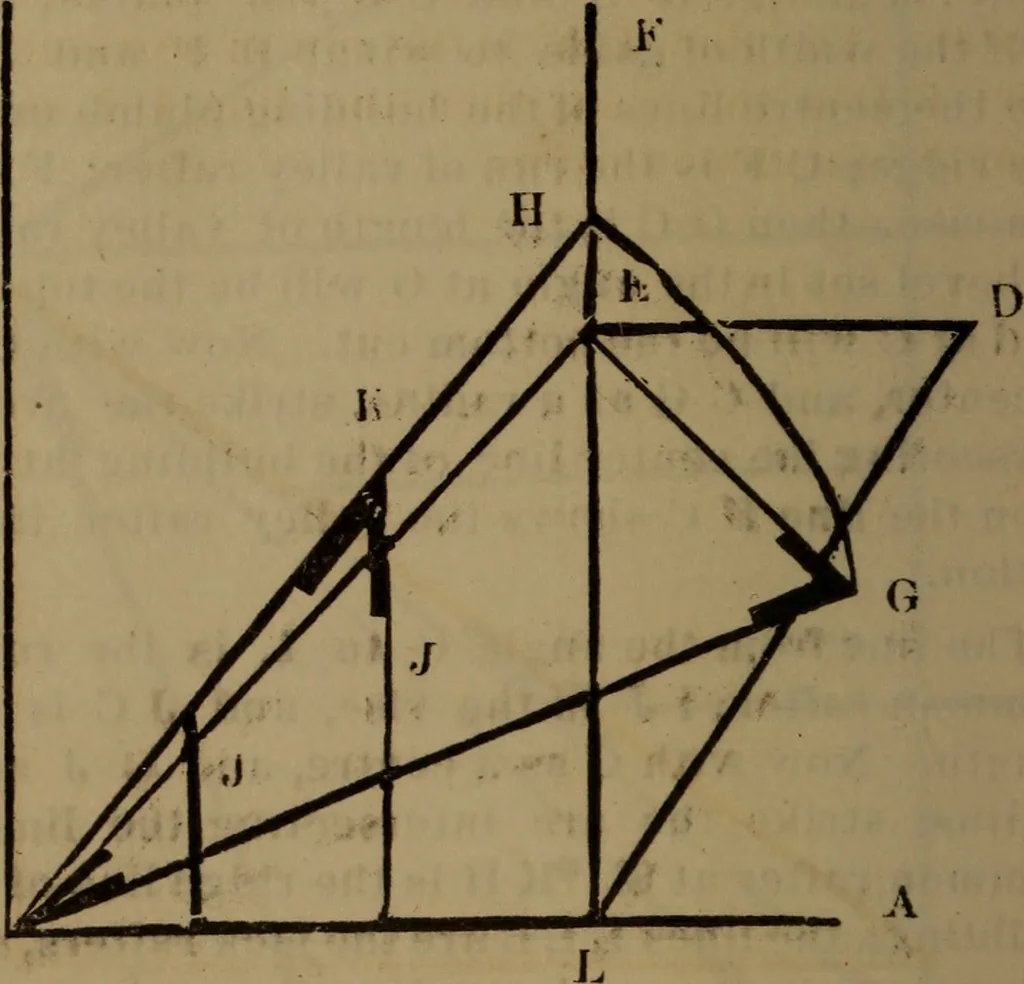

in the angle at N will be the cross-cut of the same. The cuts at the top and bot-tom representing the pitch of the roof will be thesame as the common rafter. Rule for Finding the Length of Hip-Raf-TKR FOR A Regular Hip.—Square the run of thecommon rai*ter, double it, aad the square of therise of… … Lnt the lines A B, nnd B C. represent the iiininplutes; the lines 1)E ;u)c1 E F, the deck plates:tlien B K is the run of hip rafter; now draw atlight anirles the risp of tl>e rafter, E G. Connect(J with Band yoi have the length ^>*liip rafter.A htxel set in the aniilc u\ G will l)e the top…
