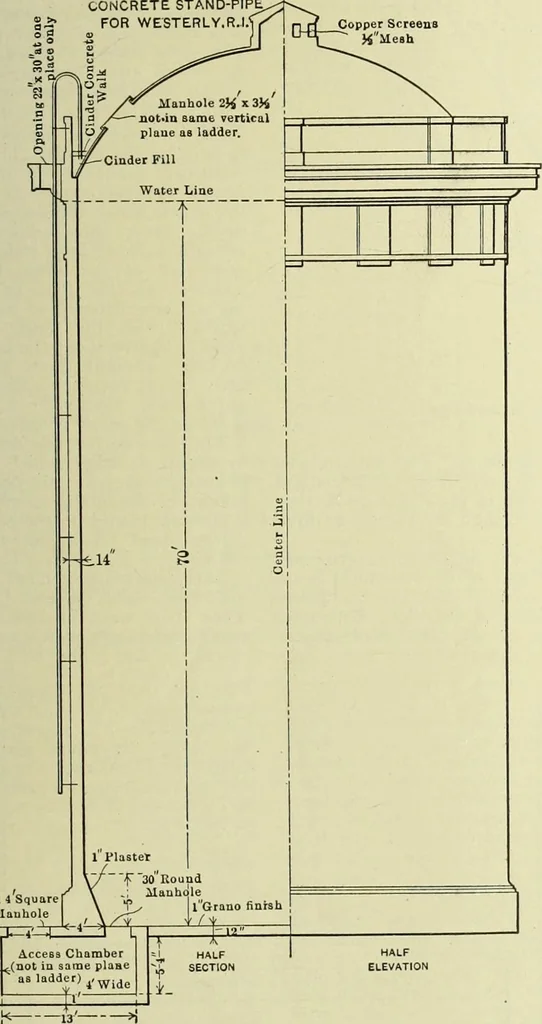

marked contrastwith the light concrete, give a distinctly pleas-ing appearance. The stand-pipe is founded on hardpan,which at this point is only 5 or 6 ft. belowthe surface. The inside diameter is 40 ft.;the height, from the floor to the overflow, is70 ft., and from the ground to the top of… … x4square| \Manhole | f Access Chamber->fl-R(not iQ sarae PlaBe Fig. 1. Fig. 1—Elevation and Section of Reinforced Concrete Standpipe, Westerly, R. I. 11 the only reserve supply was contained insteel stand-pipe having a capacity of 370,000ds. Additional reserve was thought advis-)le, and, as the…
