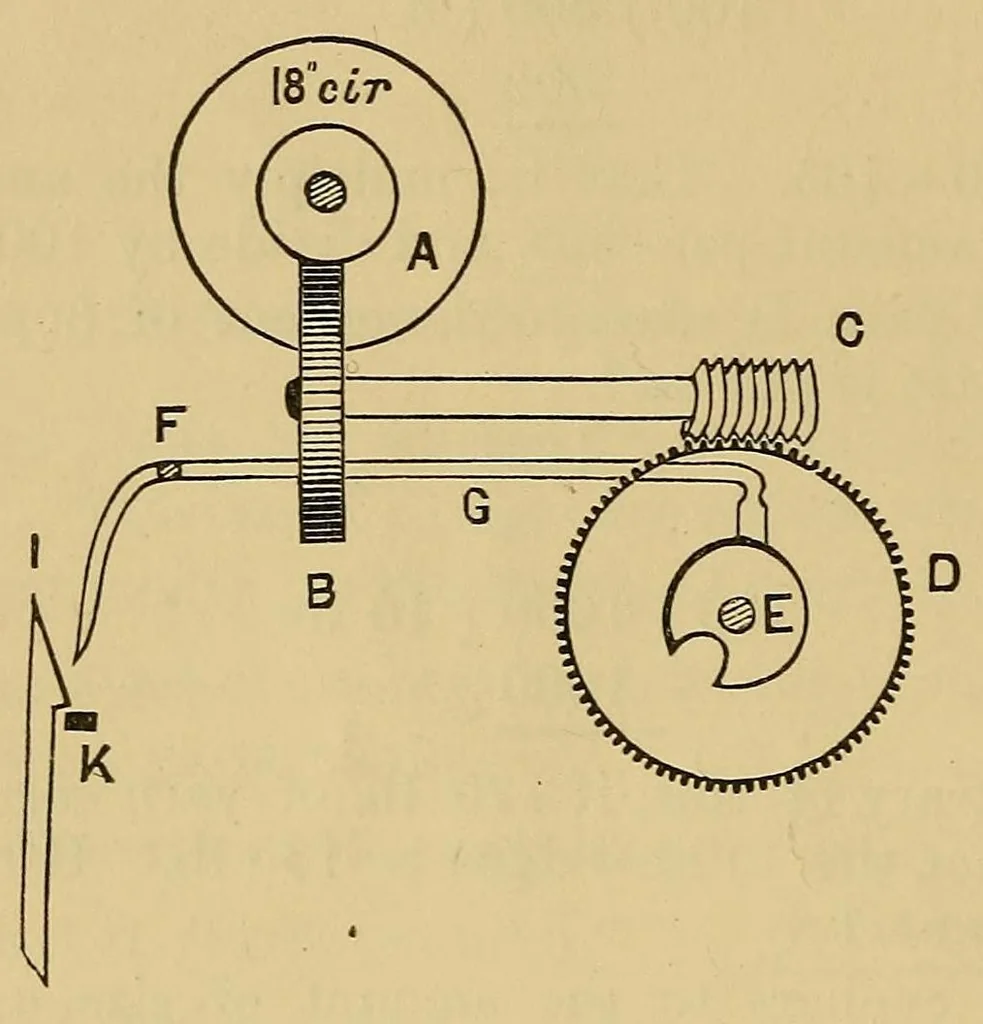

64 SLASHER AND BEAMING CALCULATIONS. Beaming Frame. The measuring motion (fig. 13) consists of a roller 18 inches in circumference, over which the yarn passes and carries it round. Fig. 13. … On the end of the shaft on which the roller is fi^xed is a worm A driving the wheel B ; on the same stud as B is another worm C, driving the wheel D ; the measuring roller is 18 inches in circumference ; the wheel B con- tains 70 teeth, the wheel D 100 teeth ; therefore one revolution of the…
