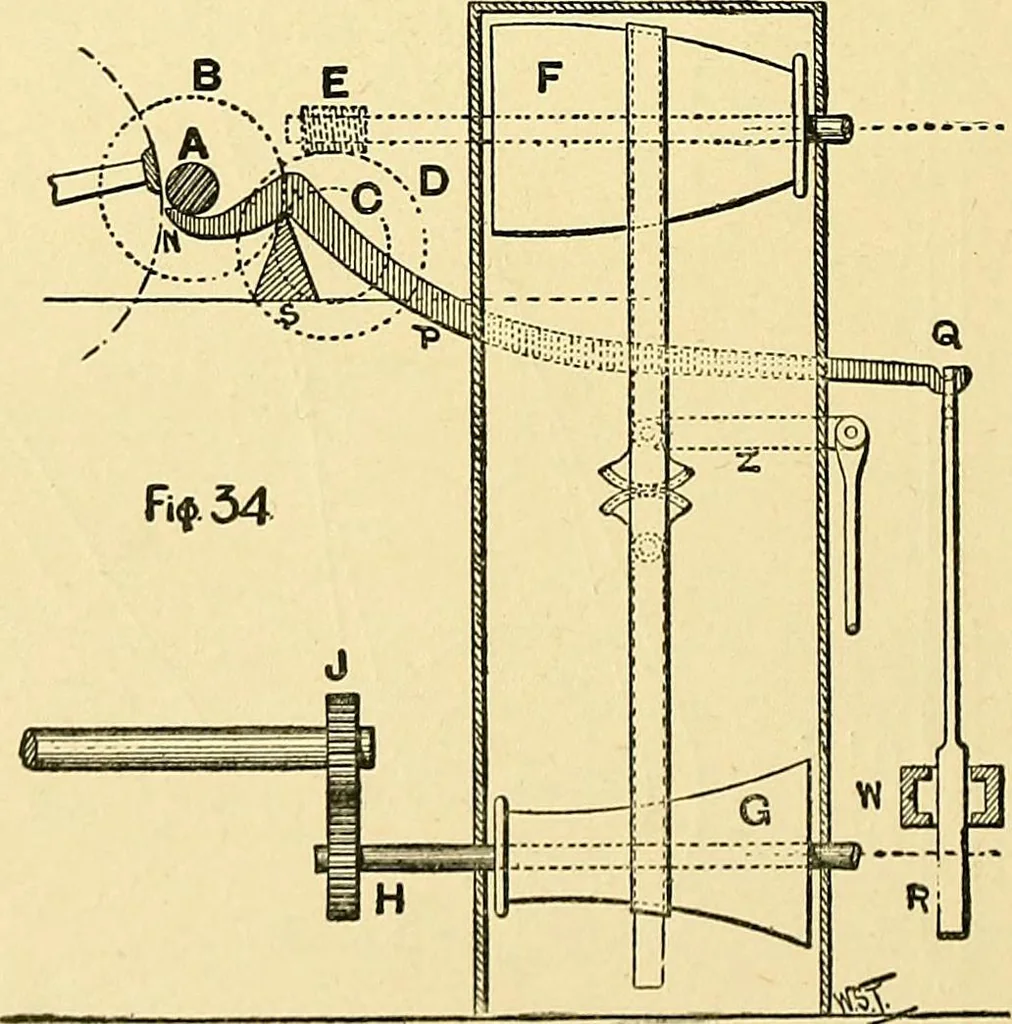

strap movedfrom EM to CJ. If a reverse direction is required to thelathe spindle a crossed belt can be used, as shown in Fig. 33.When a crossed belt is employed, as in Pig. 33, the belt will fitexactly all the pulleys on a pair of stepped cone pulleys if thesum of the diameters of each pair of… … for this, so, instead of sudden steps in the pulleys, lengthenedpulleys of a conical form arc employed. An example is givenin Fig. 34. In openers and scutchers these cone drums are used to TEXTILE MECHANICS 21
