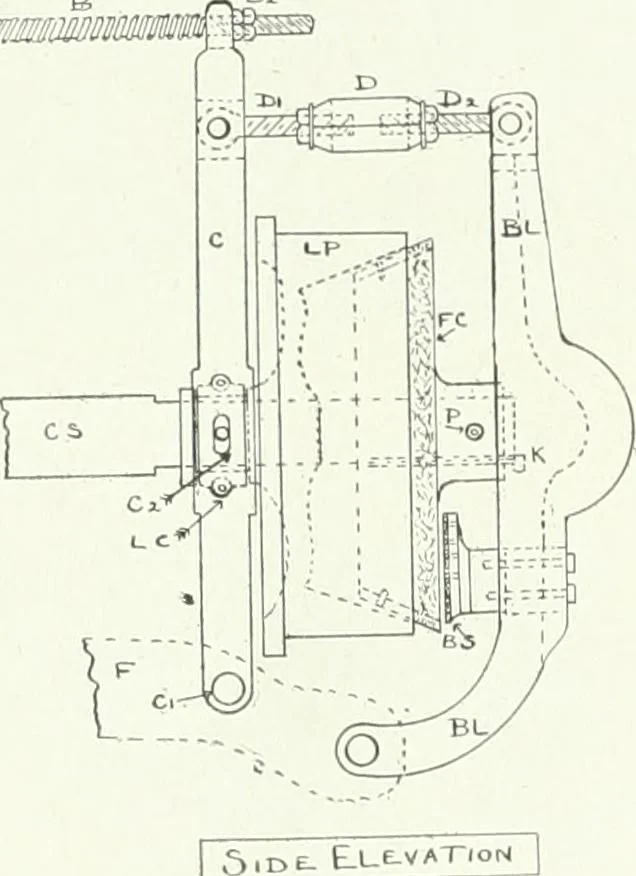

3 keyed on tothe crank shaft C of loom. It will be noticed that thetwo spTir wheels are eccentric wheels, this idea beingto vary the speed at which the going part travels, soas to allow a i)ause at the back centre, to give moretime foi- the shuttles to cross from box to box, and togive a 4ui<-k… … Fig, 21. are usually marked by tiie makers, but, if not, theexact position of gearing should be found, and thewheels nuuked. On the newer type of fast looms thisidea is dispensed with, the picking having been im-proved to give a snuirter and quicker blow to the shut-tles. The handle to work the…
