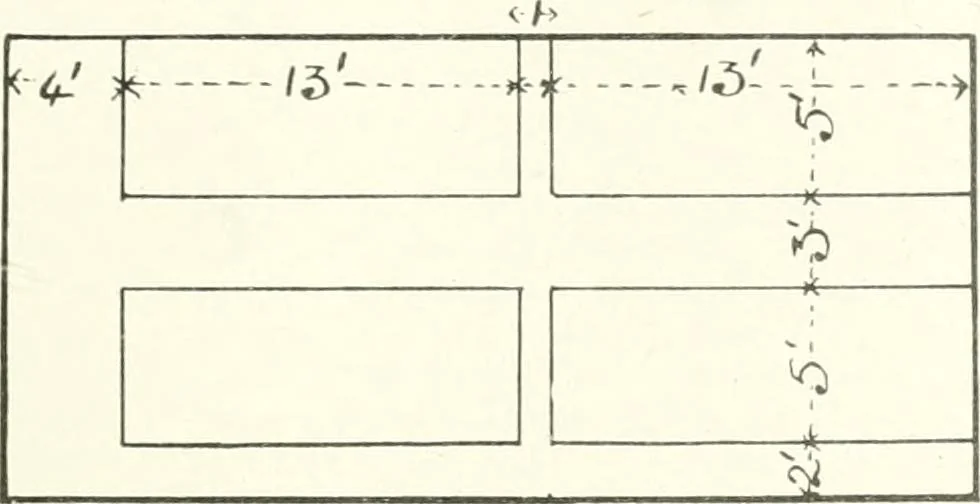

This is to allow of two rows being i-uu l)y oneline shaft, and to allow for one or two weaveis to watchtwo looms. See Diag. II. for illusti-ation of this point.Here the looms shown represent the Dobcross type,where a counter shaft is used. This runs at right an-gles to the main shafts of looms,… … Method of Spacing Looms. When looms aie placed as in Diag. I., the chief andmost important i^oint is to see that the crank shafts Aof looms ai-e exactly i)arallel to the line shaft L.S. Ifplaced as in Diag. II. tlie crank shaft I should be atright angles, and the counter shaft B parallel to…
