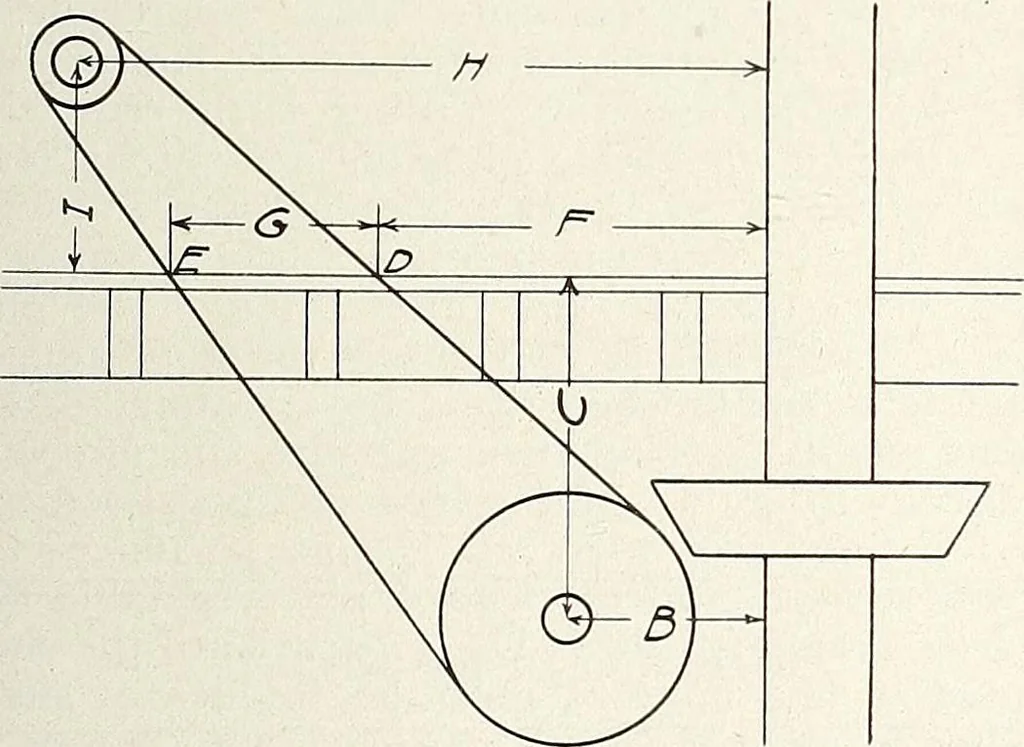

rge enough to overcomethe error in my measurements. Can you tell me whatthe method is by which holes of this kind are locatedI believe it is a simple matter, but do not know howto go to work. A. First make a profile sketch of the building,showing the location of the line shaft, its distance be-low… … Fig. 4 post (H) and the distance from the floor to the drivenpulley (I) and mark the location of the end of theshaft, also the size of the driven pulley. Now drawin the belt as it is to run, either straight or twist, andby measuring from the post to the points (D) and (E)you have the locations for…
