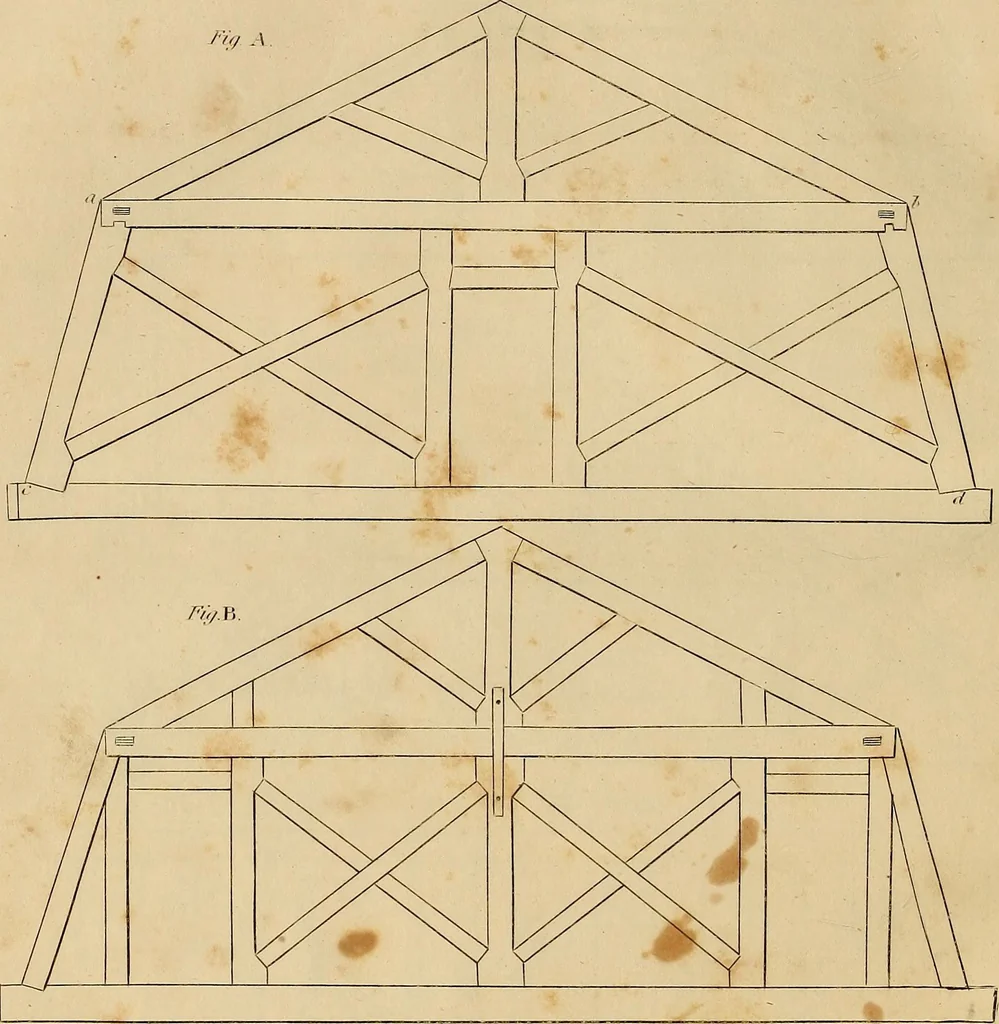

% /7//A ij … Fii/X. i] n=n HH ■n=^i Q^ ^ DESIGNS OF ROOFS. 81 PLATE XLII. This roof is calculated for a spao of seventy or eighty feet. You will observe in this, and the foregoing roofs, that the trusses are the same in num-ber as the purlines which they have to support; for how absurd it is to give a roof…
