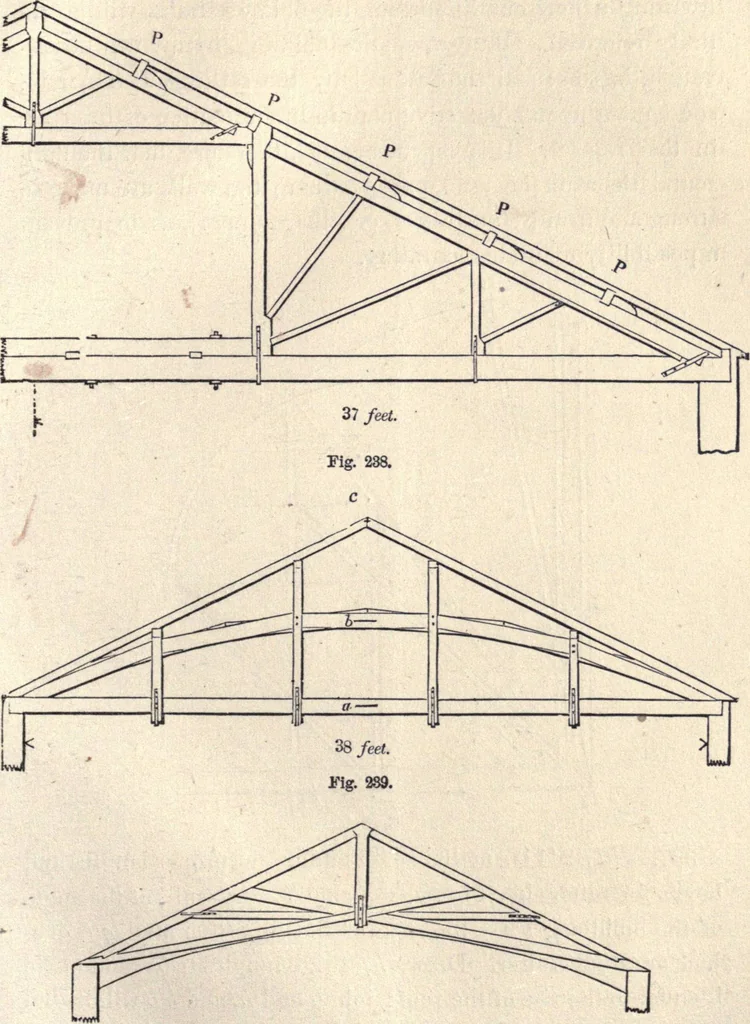

FRAMING. 283 riously objectionable, and should always be avoided ; as thesmall height gained by the omission of the tie-beam can never … Fig. 240. compensate for the powerful lateral strains, which are exertedby the oblique position of the supports, tending to separate the 284 AMERICAN HOUSE-CARPENTER. walls. Where an arcli is required in the ceiling, the best planis to carry up the walls as high as the top of the arch. Then,by…
