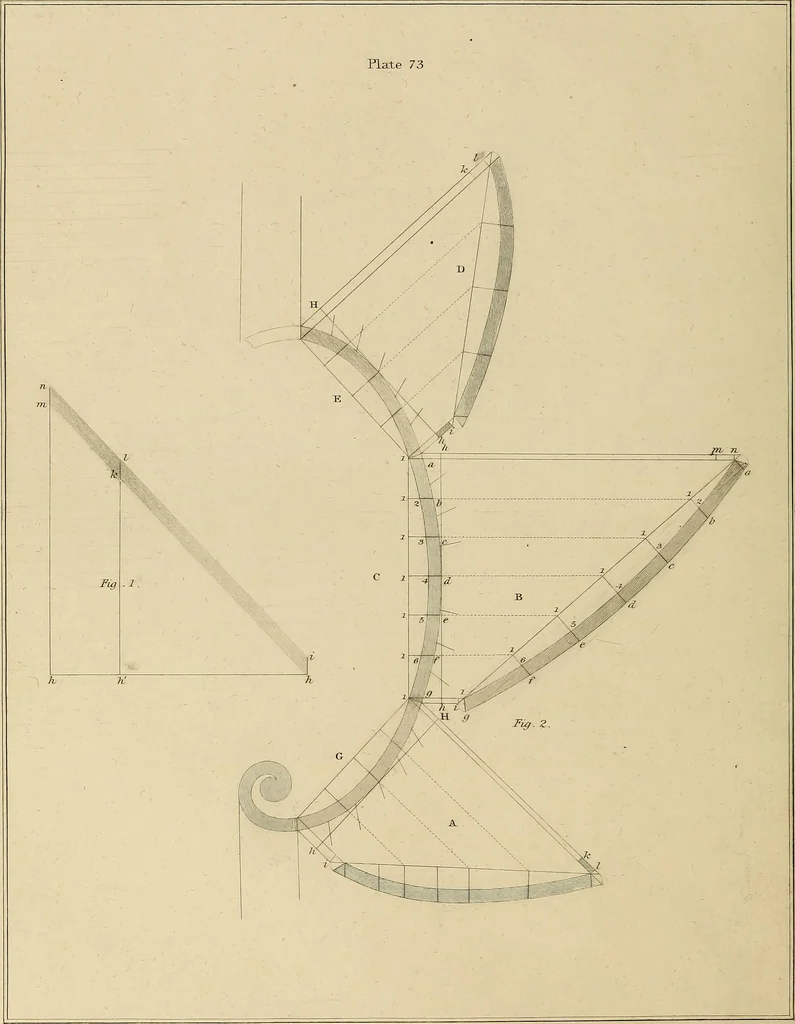

HAND-RAILING. 89 PLATE 73. To draw the Face-moulds for the Railing of an elliptic Stair-case. The plan and section being laid down as in the preceding plates, it will be observed thatthe ends of the steps are equally divided at each end; that is, they are equally divided roundthe elliptic wall, and…
