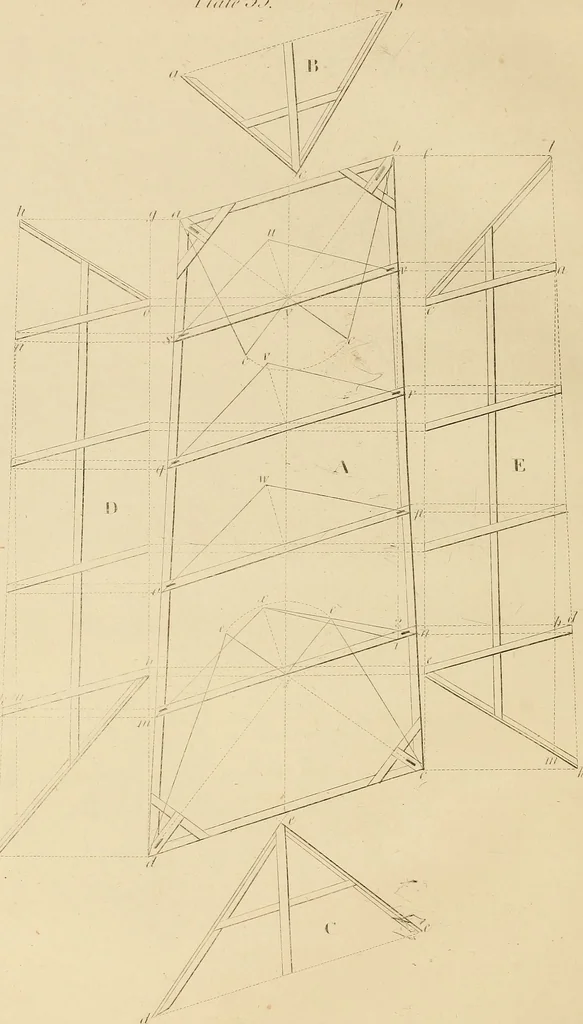

//u/r:i\ … ROOFING. 47 PLATE 35. Ho}v to lay out an irregular Roof in Ledgement, rvith all its Beams lying hevel ujion the Plan,so that the Ridge may he level when finished; the Plan and Height of the Roo7n being given. The lengths of the common and hip rafters are found as usual. From each side in…
