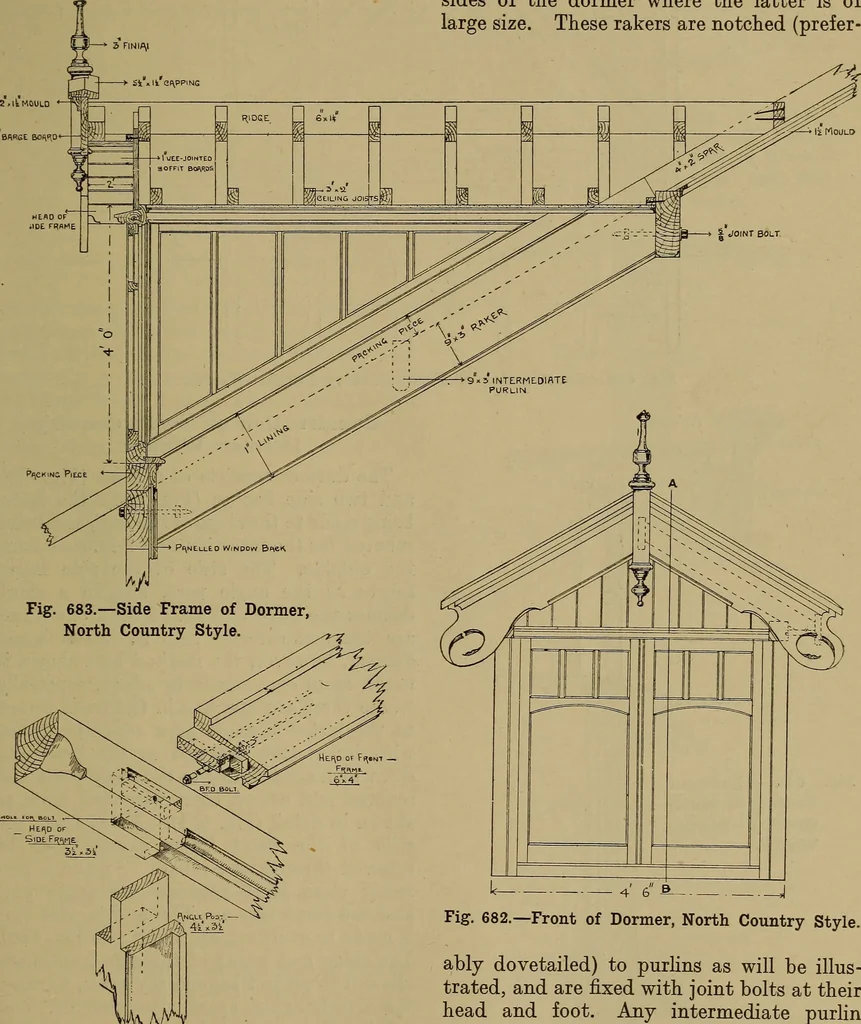

fixed at the lower end of the window andanother at the ceiling level of it, the shortrafters being fixed to these trimmers as shown. FRAMEWORK OF DORMER WINDOWS. W, North Country Style. The arrangement next shown is that mostgenerally favoured in the North of England, roof timbers are trimmed to… … \tfW Fig. 684.—Joints in Angle Post. where side-lights and casement sashes arerequired. In constructing the window, the Fig. 682.—Front of Dormer, North Country Style. ably dovetailed) to purlins as will be illus-trated, and are fixed with joint bolts at theirhead and foot. Any intermediate…
