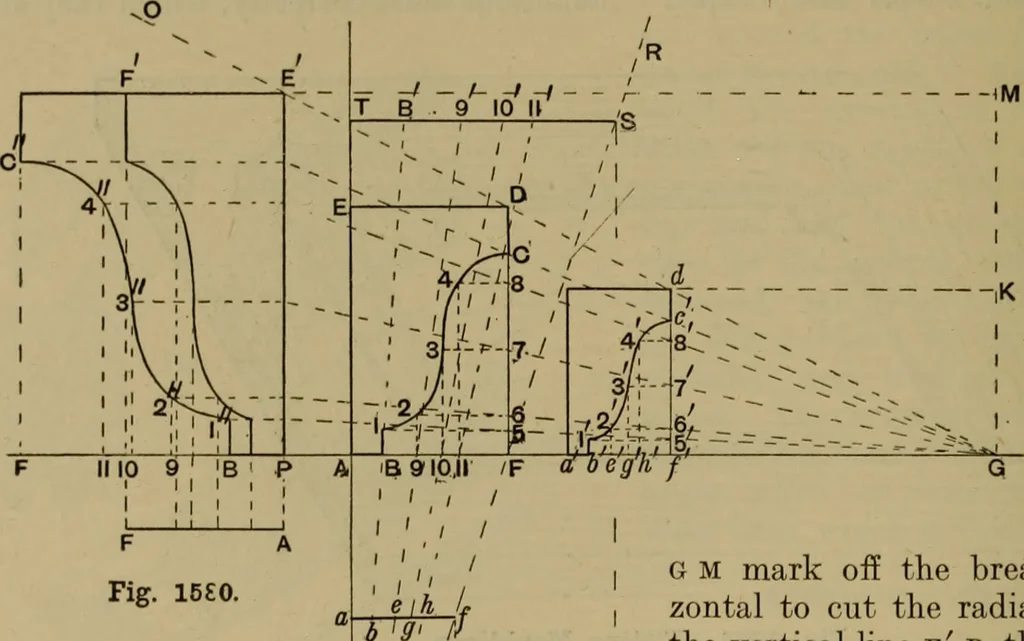

ting down from points 2, 3, h f in /, draw the horizontal /, a, which cutsthe radiating lines in b, e, g, and h; thenfrom / mark off corresponding distancesas shown by a, b, e, g, h\ and raise pro-jectors as shown; then from the pointwhere the radiating lines from g cut d, f, in5, (>, 7, 8,… … Figs. 1579 and 1580.--Diminishing and En-K larging Mouldings. Fig. 1579. i // / III I ill <„,/wl I L- - and 4, we obtain 9, 10, and 11. Now fromh draw radiating lines passing through pointsB, (», 10, 11, and f, also from G draw radiatinglines passing through points 5, 6, 7, 8, andd. At G set up…
