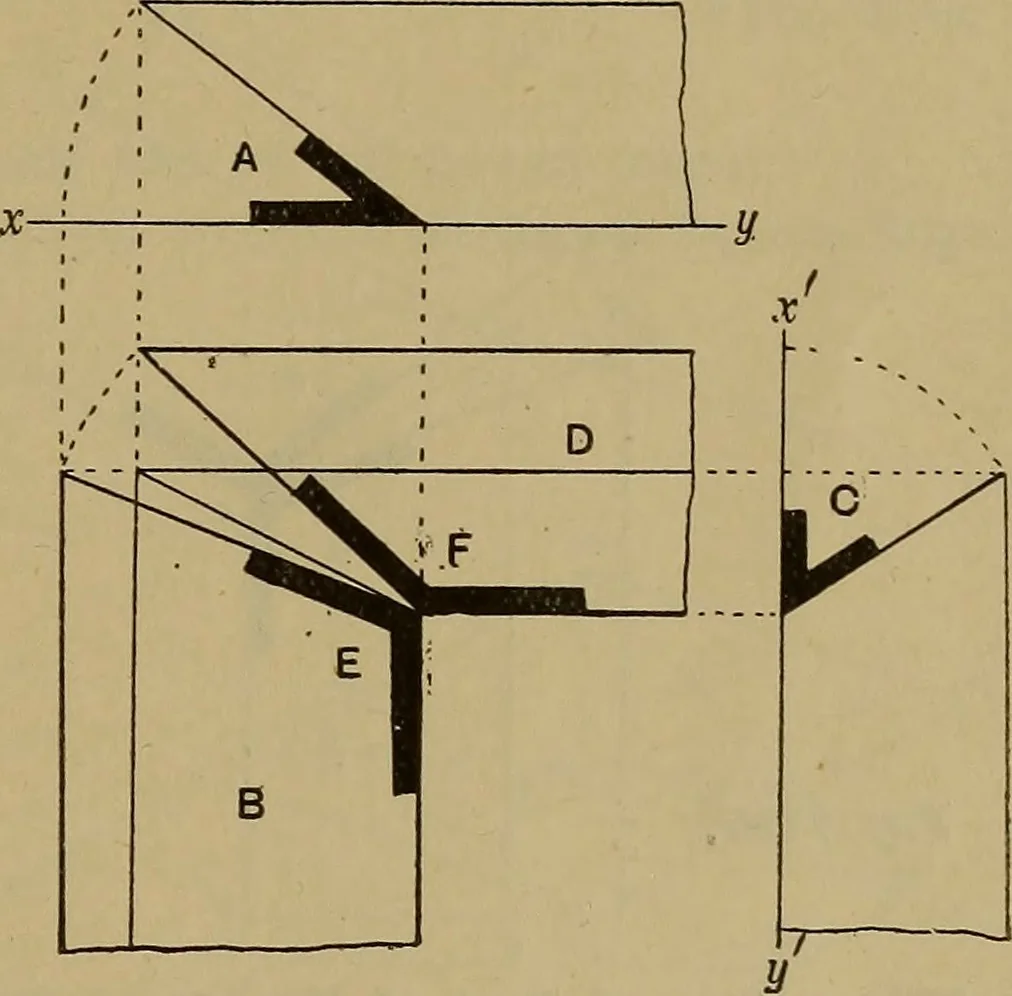

lem to obtaining the bevels for the face sides of splay liningsand troughs, etc. A corner of such anexample is shown in plan at Fig. 1780.Consider the inner surfaces as geometricalinclined planes, and draw a portion of thesesurfaces in plan a b c d e and / (Fig. 1781).Produce / e to e. Consider it… … Fig. 1783.—Geometrical Construction forObtaining Bevels for Fig. 1782. height of the trough as shown by V c.Then the bevel shown at G will be that re-quired for the edge of the stuff that is tofit the edge of the frame or bottom of thetrough. Now consider b e and b e as theplan and elevation of the…
