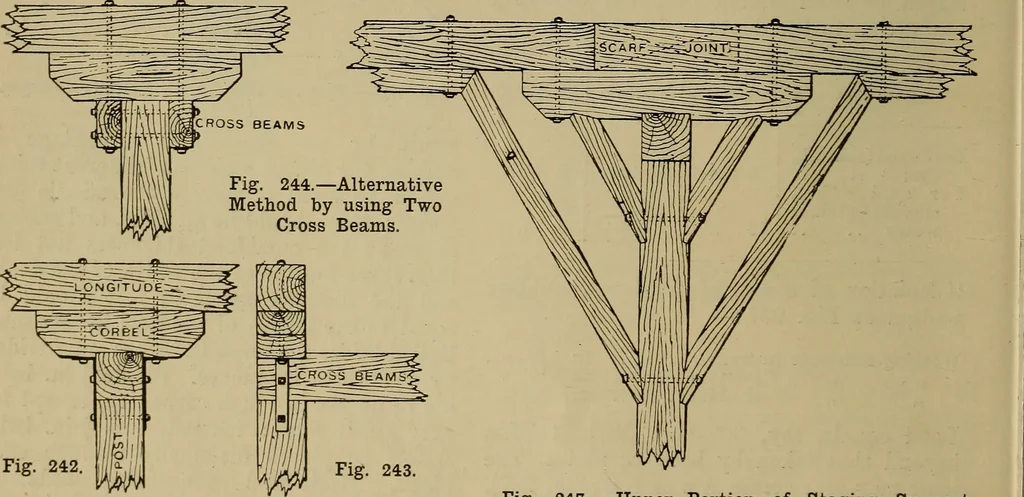

Fig. 240. Fig. 241. Figs. 240 and 241. — Securing Joints between Post and Beams by Straps and Bolts. Fig. 246.—Detail of Form ofStaging stronger than thatshown by Fig. 245. … Fig. 242 Figs. 242 and 243.—Joints and Fastenings be-tween Post, Corbel and Beam for Heavy Stage. Fig. 247.— Upper Portion of Staging Support-ing Heavy Loads ; Head Beam Halved and Boltedto Corbel. JOINTS. 61 them in addition to the end-long strain,while vertical struts have no cross strainto meet.
