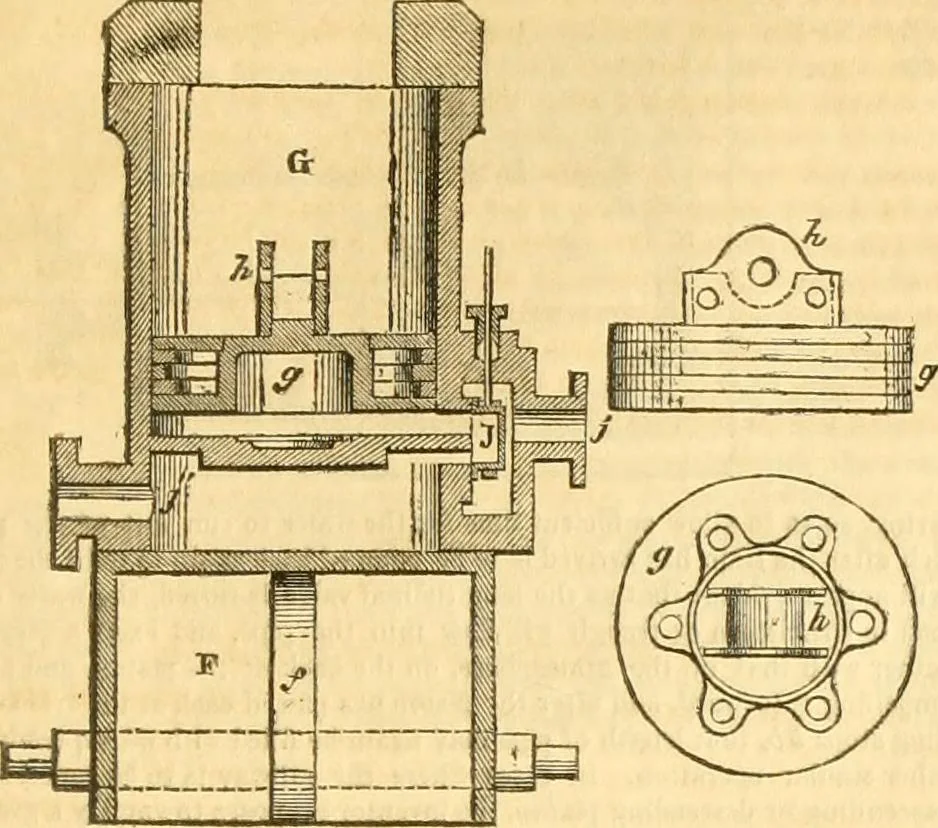

„AS?>T3,t-is.SLXSiStx^.rip^r 1844.] THE CIVIL ENGINEER AND ARCHITECTS JOURNAL. 367 the die, 6; C, jointed bar moving on a knee joint at c, and hingejoints at c and c; D D, upright standards fixed with bolts at the basedf and on the top at d, to side rods or stays, E E; F, cast iron basewith a… … Fig. 5. top,/, with a wrought iron hoop to securely hold the base of the stem,A; G, open top steam cylinder; g, piston; H, piston rod with amoveable joint at h on the piston and at the top, c; J, valre withsteam and eduction ports; j, steam pipe; j, eduction port, and j,bandle for a man to regulate…
