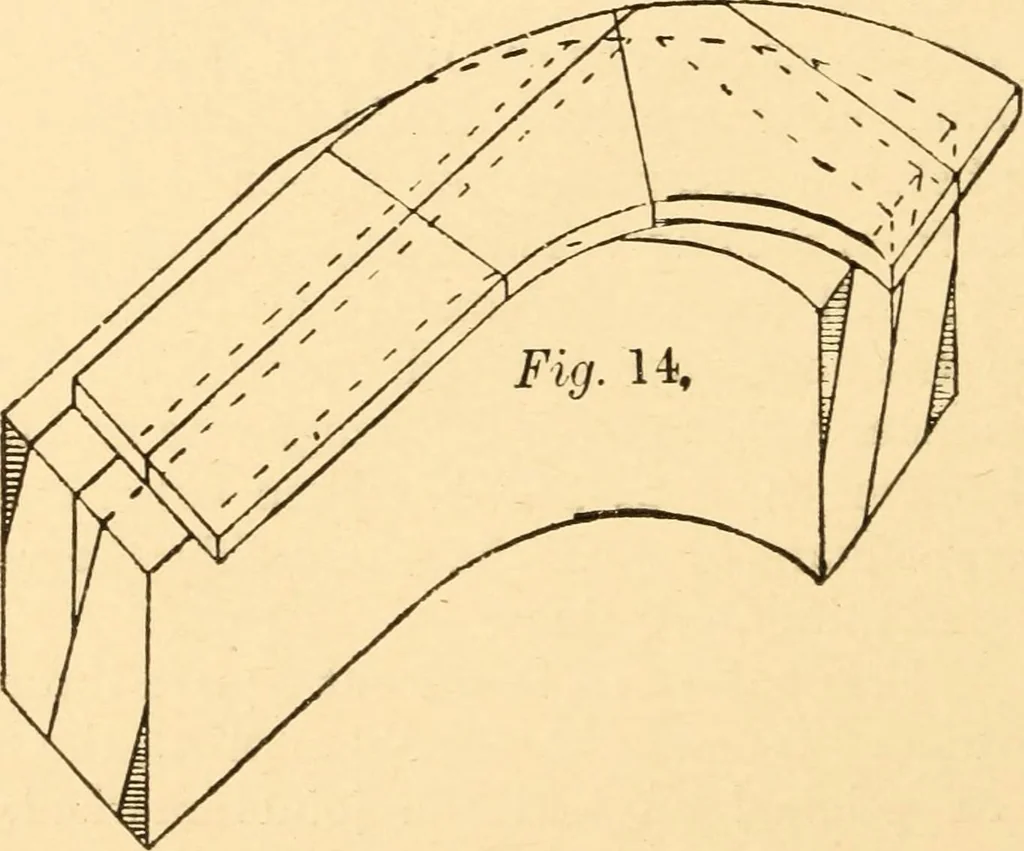

lines, then with the bevel for each end, draw the linesBB through the center of the stuff. Square over theselines on the face on both sides as seen by the dottedlines on the top side. … THIRD METHOD 75 Fig. 14 shows the face mould in position with the tan-gent lines held to the corresponding line on the wreath.The etched part shows the amount to be taken off. 10 P i \^ D / / 9 / 3 f r C Yig, 15. R8 Fig. 15 is the plan of a rail for a quarter-space land-ing, the risers landing and…
