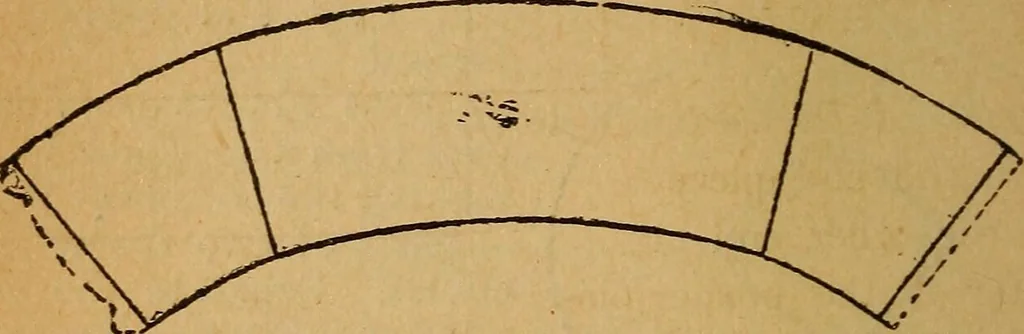

of large diameter. Then draw the depth of vesseland flare desired, as A B CD. Extend the lines C A and 376 D B until they cross at ^, set the compasses at ^, and describethe curved Imes C D and AB. Make the length A F equalto A A m Fig. i. Add the locks as shown in dotted lines;this will be the… … Fig 4. make the dish. Should it be found desirable to make thebody of pan in only two pieces, then cut the smaller or endpattern in tw^o and place it upon each side of the large pattern,as shown in Fig. 4. An oval can be made from three or more centers upon thesame plan when desired. FLARING…
